Built-in Hydraulic GeneratorNo external power or extra generator needed. Driven by carrier hydraulics for plug-and-play operation, significantly reducing installation costs.
Official Hardox® MemberHousing and structures feature official Hardox® $500/600$, extending life by $$3\times$$. High material toughness ensures zero deformation under heavy impact.
Universal OEM CompatibilityBeyond Sany/XCMG partnerships, we provide seamless integration for $15+$ global brands like CAT, Komatsu, Volvo, and Hitachi.
$2.4s$ Ultra-Fast CyclePatented hydraulic control tech reduces suction/release cycles to $2.4s$. Boost your hourly output by $30\%+$ compared to industry averages.

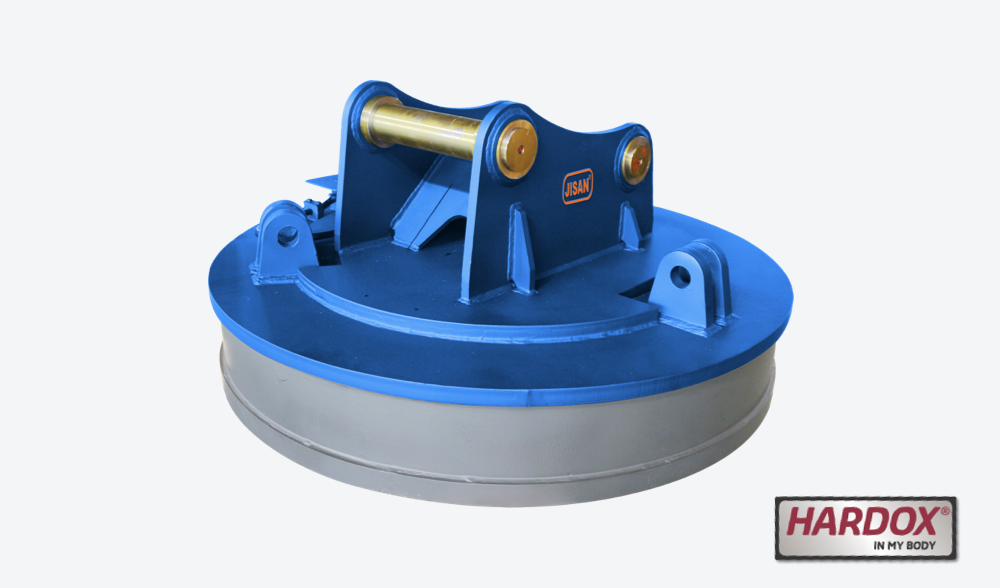

Electromagnetic suction cup (directly attracted by electricity)
| Model No. | Excavator Weight (ton) | Weight (kg) | Power (kW) | Diameter A (mm) | Compatible Carrier Brands |
|---|---|---|---|---|---|
| JSEL1000 | 12-16 | 931 | 7 | 1000 | - |
| JSEL1200 | 18-22 | 1340 | 10 | 1200 | - |
| JSEL1300 | 23-26 | 1615 | 11.9 | 1300 | - |
| JSEL1500 | 28-32 | 2241 | 15.6 | 1500 | - |
| JSEL1650 | 32-40 | 2820 | 16.5 | 1650 | - |
Hydraulic suction cup (excavator hydraulic drive)
| Model No. | Excavator Weight (ton) | Weight (kg) | Power (kW) | Diameter A (mm) | Pressure (bar) | Traffic (lpm) | Compatible Carrier Brands |
|---|---|---|---|---|---|---|---|
| JSSTP650 | 3.5-6 | 270 | 1.56 | 650 | - | - | - |
| JSSTP800 | 6-12 | 450 | 2 | 800 | - | - | - |
| JSSTP1000 | 12-18 | 1350 | 8 | 1000 | 200 | 45 | - |
| JSSTP1000T | 12-18 | 1450 | 8 | 1000 | 200 | 45 | - |
| JSSTP1200 | 20-30 | 1850 | 15 | 1200 | 200 | 75 | - |
| JSSTP1200T | 20-30 | 1950 | 15 | 1200 | 200 | 75 | - |
| JSSTP1300 | 30-36 | 2050 | 20 | 1300 | 200 | 85 | - |
| JSSTP1300T | 30-36 | 2150 | 20 | 1300 | 200 | 85 | - |
| JSSTP1600 | 36-45 | 3500 | 30 | 1600 | 200 | 150 | - |
| JSSTP1600T | 36-45 | 3700 | 30 | 2000 | 200 | 150 | - |
Product Showcase
Heavy-duty hydraulic shears designed for large steel dismantling. Ideal for cutting H-beams, I-beams, vehicle bodies, and heavy scrap metal.
✔ Disassembly of waste steel structures, H-beams/I-beams/girders/support beams/vehicles and ships.
✔ Heavy steel cutting in steel plants/scrap steel recycling stations/shipbreaking yards.
✔ Extraordinary shear force controllable with just 36 tons.
✔ Lever-type boom installation reduces cost threshold.
Compact Hydraulic Rotating Eagle-Beak Shear | Fits 3–5 Ton Excavators | Lightweight & Efficient
✔ Demolition of scrap steel structures, H-beams/I-beams, girders, and vehicle/ship components
✔ Heavy-duty steel shearing for steel mills, scrap yards, and ship-breaking yards
✔ Top choice for compact excavators and operations in confined spaces
Entry-Level Hydraulic Rotating Eagle-Beak Shear | Fits 6–9 Ton Excavators | Best Value
✔ Demolition of scrap steel structures, H-beams/I-beams, girders, and vehicle/ship components
✔ Heavy-duty steel shearing for steel mills, scrap yards, and ship-breaking yards
✔ Best-selling entry-level model for 6–9 ton excavators; ideal for urban demolition and small steel-structure facilities
Mid-to-Large Hydraulic Rotating Eagle-Beak Shear | Fits 12–18 Ton Excavators | Core Workhorse Model
✔ Demolition of scrap steel structures, H-beams/I-beams, girders, and vehicle/ship components
✔ Heavy-duty steel shearing for steel mills, scrap yards, and ship-breaking yards
✔ Primary model for medium-sized steel-structure facilities and scrap recycling operations

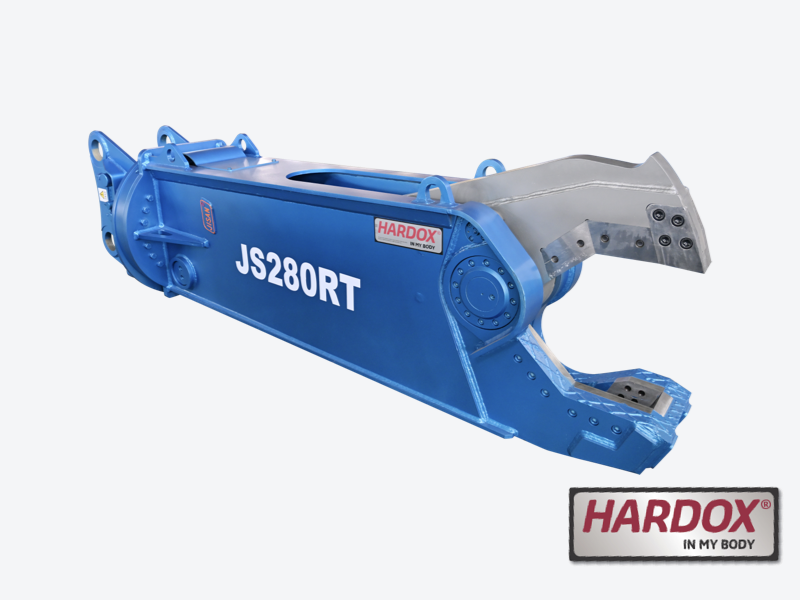

Heavy-Duty Hydraulic Rotating Eagle-Beak Shear | Fits 20–28 Ton Excavators | Wide Jaw Opening & High Shearing Force
✔ Demolition of scrap steel structures, H-beams/I-beams, girders, and vehicle/ship components
✔ Heavy-duty steel shearing for steel mills, scrap yards, and ship-breaking yards
✔ Large-scale steel demolition, bridge/factory steel structures, and heavy scrap processing

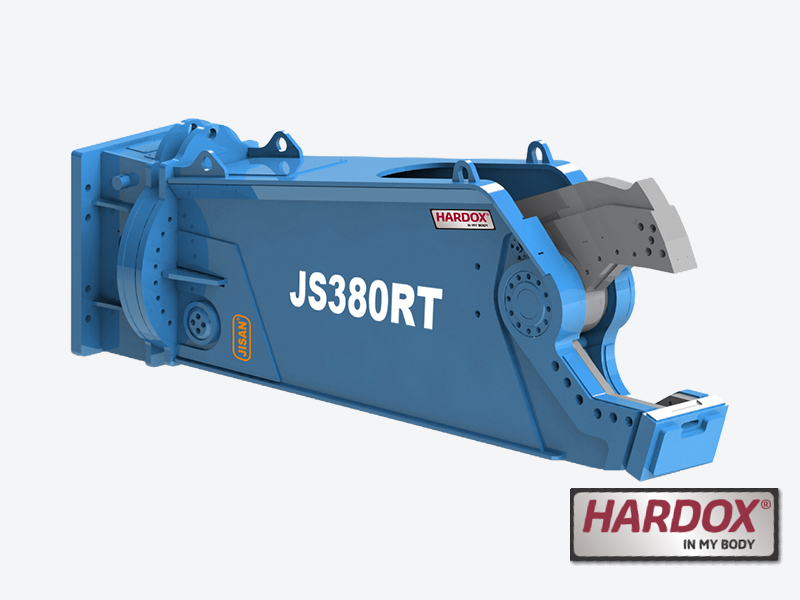

Ultra-Heavy-Duty Hydraulic Rotating Eagle-Beak Shear (Boom-Mounted) | Fits 20–38 Ton Excavators
✔ Demolition of scrap steel structures, H-beams/I-beams, girders, and vehicle/ship components
✔ Heavy-duty steel shearing for steel mills, scrap yards, and ship-breaking yards
✔ Boom-mounted design enhances leverage; allows 20-ton class excavators to operate the "380" series model Suitable for scenarios requiring powerful cutting force despite excavator tonnage limitations
Ultra-heavy-duty hydraulic rotating eagle-beak shear (stick-mounted) | Compatible with 30–38 ton excavators
✔ Demolition of scrap steel structures, H-beams/I-beams, girders, and vehicle/ship components
✔ Heavy-duty steel cutting for steel mills, scrap yards, and ship-breaking yards
✔ Flagship configuration for large ship-breaking yards, heavy steel structure facilities, and 30-ton class excavators

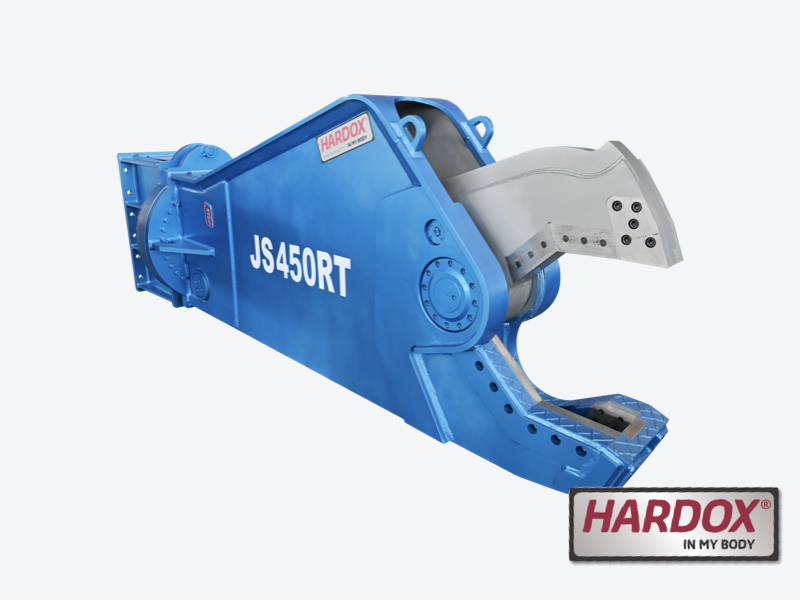

Flagship-class hydraulic rotating eagle-beak shear (boom-mounted) | Compatible with 30–50 ton excavators
✔ Demolition of scrap steel structures, H-beams/I-beams, girders, and vehicle/ship components
✔ Heavy-duty steel cutting for steel mills, scrap yards, and ship-breaking yards
✔ Enables a 30-ton excavator to drive a "450-class" shear via boom mounting, reducing equipment acquisition costs

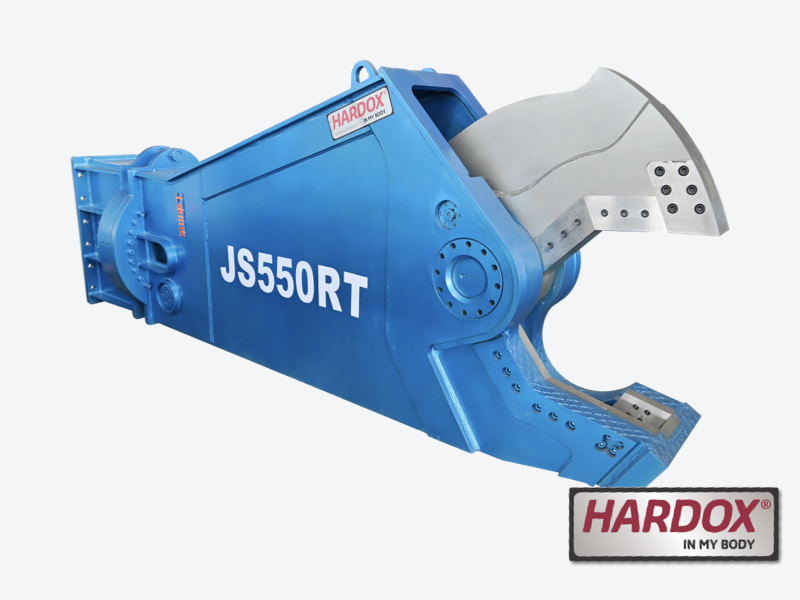

Flagship-class hydraulic rotating eagle-beak shear (stick-mounted) | Compatible with 40–50 ton excavators
✔ Demolition of scrap steel structures, H-beams/I-beams, girders, and vehicle/ship components
✔ Heavy-duty steel cutting for steel mills, scrap yards, and ship-breaking yards
✔ Demolition of massive ship hulls and steel structures; the top choice for 40+ ton flagship excavators
Ultra-flagship hydraulic rotating eagle-beak shear (boom-mounted) | Compatible with 36–60 ton excavators
✔ Demolition of scrap steel structures, H-beams/I-beams, girders, and vehicle/ship components
✔ Heavy-duty steel cutting for steel mills, scrap yards, and ship-breaking yards
✔ Massive cutting force manageable by a 36-ton excavator
✔ Lever-style boom mounting lowers the cost barrier
Ultra-flagship hydraulic rotating eagle-beak shear (stick-mounted) | Compatible with 46–60 ton excavators
✔ Demolition of scrap steel structures, H-beams/I-beams, girders, and vehicle/ship components
✔ Heavy-duty steel cutting for steel mills, scrap yards, and ship-breaking yards
✔ Specialized for ultra-high tonnage; demolition of massive steel structures and bridges

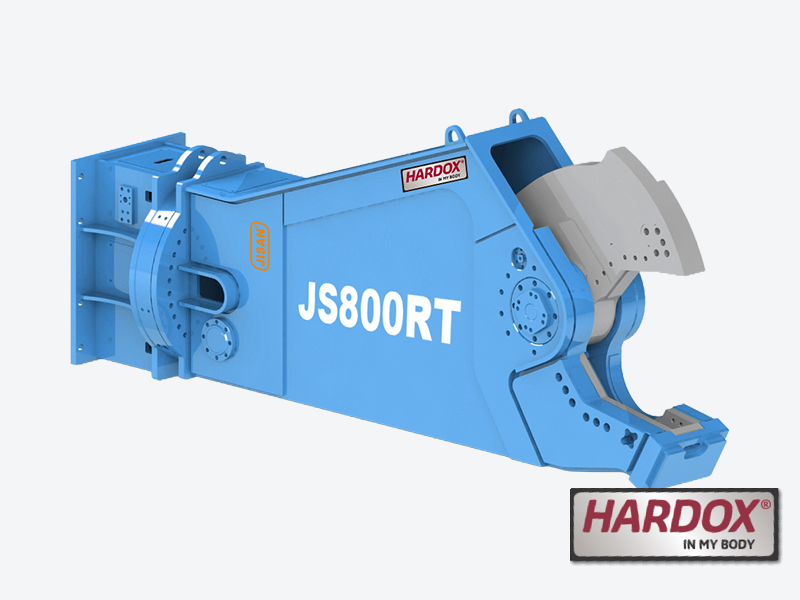

"Behemoth-Class" Hydraulic Rotating Eagle-Beak Shear (Boom-Mounted) | Compatible with 50–80 ton excavators
✔ Demolition of scrap steel structures, H-beams/I-beams, girders, load-bearing beams, vehicles, and ships
✔ Heavy-duty steel shearing for steel mills, scrap yards, and ship-breaking yards
✔ A massive shear drivable by a 50-ton excavator
✔ Flagship model for ultra-large ships, bridges, and steel structures
FAQ
- Q: What's the difference between hydraulic and electromagnetic suction cups?A: Hydraulic type – Driven by a hydraulic generator, no external power supply is required, suitable for field and mobile operations. Electromagnetic type – Directly powered by electricity, with strong and stable suction force, suitable for high-precision operations in fixed locations.
- Q: How is the suction force evaluated?A: It depends on the suction cup diameter, power, and material. Larger diameter and higher power result in stronger suction force. Specific calculations need to be made based on material thickness and surface smoothness.
- Q: Do you offer OEM/ODM services?A: Yes. We provide full OEM/ODM support, including custom jaw sizes, mounting brackets, and hydraulic configurations to meet specific project or regional requirements.
- Q: What after-sales support do you provide?A: All JISAN shears come with a 18-month warranty. We offer global spare parts shipping, 24/7 technical support, and remote troubleshooting to minimize downtime for your operations.
- Q: Can you provide installation and operation manuals in English?A: Yes. Every unit includes a detailed English installation, operation, and maintenance manual, along with video tutorials for setup and basic troubleshooting.
