Hydraulic Eagle Shear-JS550RT

Heavy-duty hydraulic shears designed for large steel dismantling. Ideal for cutting H-beams, I-beams, vehicle bodies, and heavy scrap metal.


   Disassembly of waste steel structures, H-beams/I-beams/girders/support beams/vehicles and ships.

   Heavy steel cutting in steel plants/scrap steel recycling stations/shipbreaking yards.

   Extraordinary shear force controllable with just 36 tons.

   Lever-type boom installation reduces cost threshold.

Model: JS550RT
Technical Specifications
Technical Specifications
Item / Unit JS550RT
(large arm model)
Applicable Excavator (ton)36-60
Working Pressure (bar)320-350
Flow Rate (L/min)250-300
Weight (kg) 7200
Total Length (mm) 816
Total Width (mm) 800
Total Height (mm) 5300
Slew Diameter (mm) 922


Note: "-" in the table indicates that the data is not provided or is not applicable in the original figure.



Compatible Excavator Models

Below are compatible excavator carrier models for our hydraulic eagle shear. Depending on model and application, this attachment may also be referred to as hydraulic shear, eagle shear, hydraulic eagle beak shear or eagle beak shear.

01

CASE

CASE CX460 (46t) hydraulic eagle shear

02

CATERPILLAR

CATERPILLAR 336D (36t) hydraulic shear
CATERPILLAR 345 Series (345/345CL/345F) (45t) eagle shear
CATERPILLAR 350 (50t) hydraulic eagle beak shear

03

DAEWOO

DAEWOO S400 Series (S400/S400LC-111) (40t) eagle beak shear
DAEWOO S420LC-V (40t) hydraulic eagle shear
DAEWOO S450 (45t) hydraulic shear
DAEWOO S470LC-V (47t) eagle shear

04

DOOSAN

DOOSAN DX420LC (40t) hydraulic eagle beak shear
DOOSAN DX480LC (48t) eagle beak shear
DOOSAN DX520LC (50t) hydraulic eagle shear

05

HITACHI

HITACHI EX370 (37t) hydraulic shear
HITACHI EX400 Series (EX400/-1/-3/-5) (40t) eagle shear
HITACHI EX550 Series (EX550/-3/-5) (55t) hydraulic eagle beak shear
HITACHI WH04D (40t) eagle beak shear
HITACHI ZX400-3 (40t) hydraulic eagle shear
HITACHI ZX450-3 (45t) hydraulic shear
HITACHI ZX600 (60t) eagle shear

06

HYUNDAI

HYUNDAI R380LC-9 (38t) hydraulic eagle beak shear
HYUNDAI R420 (45t) eagle beak shear
HYUNDAI R450LC Series (R450LC/-3/-7) (45t) hydraulic eagle shear
HYUNDAI R480LC-9 (49t) hydraulic shear
HYUNDAI R500 Series (R500/R500LC-7) (50t) eagle shear
HYUNDAI R520LC-9 (52t) hydraulic eagle beak shear

07

KOBELCO

KOBELCO SK400 (40t) eagle beak shear
KOBELCO SK480LC-8 (48t) hydraulic eagle shear
KOBELCO SK60MK5 (60t) hydraulic shear

08

KOMATSU

KOMATSU PC360LC-5 (36t) eagle shear
KOMATSU PC400 Series (PC400/-5/-7EO/-8) (40t) hydraulic eagle beak shear
KOMATSU PC450 Series (PC450-7EO/-8/LC-8) (45t) eagle beak shear

09

SUMITOMO

SUMITOMO SH450 (45t) hydraulic eagle shear

10

VOLVO

VOLVO EC460 Series (EC460/B/C) (45t) hydraulic shear
VOLVO MX455LS (45t) eagle shear
VOLVO SE460LC-3 (45t) hydraulic eagle beak shear

Why Our Hydraulic Eagle Shear is Ideal for Scrap Yards & Factories

Why Choose Our Hydraulic JS550RT Eagle Shear

Maximize your factory's recycling throughput with our heavy-duty scrap shearing machine, engineered for continuous 24/7 operation.

Premium scrap shear blades for factory use
01

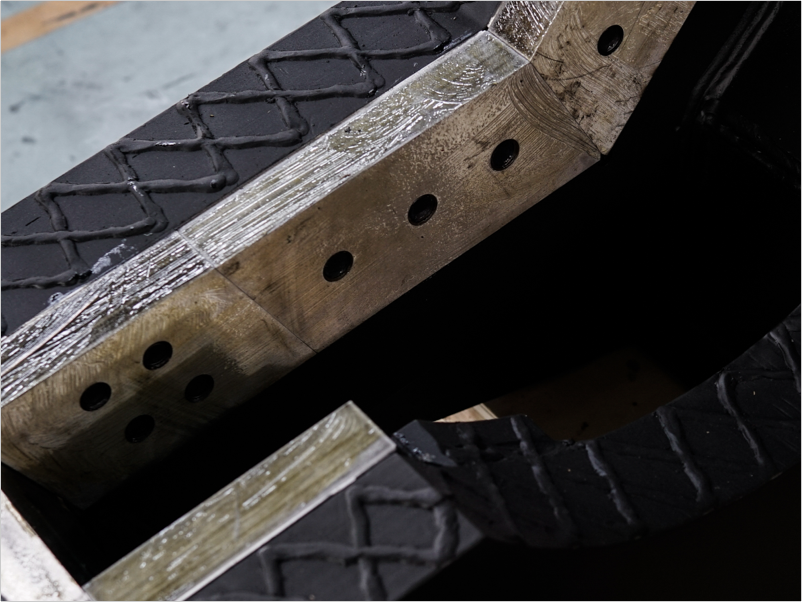

Premium Scrap Shear Blades

Made with Swedish Hardox steel & wear-resistant alloy steel scrap shear blades to cut thick industrial waste effortlessly.

High-torque hydraulic eagle shear motor
02

High-Torque Hydraulic Eagle Shear

Imported Finnish piston motor ensures our hydraulic eagle shear delivers maximum cutting force for dense metal bundles.

Efficient scrap shearing machine valve design
03

50% Faster Cycle Speed

Differential acceleration valve increases this scrap shearing machine's no-load speed by 50%, boosting daily factory output.

Anti-jamming scrap metal rotary shear gap
04

Anti-Jamming Technology

Adjustable blade gap allows quick jam release, minimizing downtime and keeping your scrap metal rotary shear running smoothly.

Stable demolition shears excavator alignment
05

Stable Operation

Wear-resistant copper blocks ensure precise alignment, extending the lifespan of your demolition shears excavator attachment.

Heavy-duty scrap metal shear forged pin
06

High Toughness Pins

Alloy steel one-piece forged pin provides extreme strength and toughness for heavy-duty scrap processing.

Protected cylinder for metal shear for excavator
07

Inverted Cylinder Design

High-strength honed barrel & imported NOK seals. The inverted design protects the rod from debris in harsh factory environments.

Versatile metal shear for excavator mounting
08

Versatile Control Options

Available in forearm or upper-arm mounting, making this metal shear for excavator highly adaptable to your facility's needs.

Frequently Asked Questions
Q: How to confirm the hydraulic eagle shear matches my excavator perfectly as an excavator scrap shear?
A: JISAN holds a full hydraulic database for Sany, XCMG, CAT, Komatsu and all mainstream brands. Our technical team will match the JS280RT or JS450RT hydraulic shear for excavator according to your excavator tonnage, calibrate pressure, flow and pin distance precisely to prevent host overheating. Any failure caused by operation beyond rated tonnage, pressure and flow will not be covered by warranty.
Q: What advantages does the 2.4s ultra-fast cycle of this scrap shearing machine bring to scrap yards?
A: Ordinary scrap metal shears take over 3.5s per cycle. JS280RT & JS450RT eagle shears are equipped with patented energy recovery speed valve, only 2.4s per cut. Daily output of this scrap shear increases by over 30% under the same fuel and labor cost, shortening ROI greatly. Warranty expires at whichever comes first: 12 months service or 2000 working hours. Warranty period will be halved if daily working time exceeds 8 hours.
Q: What advantages does Hardox450 material bring? What material are the scrap shear blades?
A: Shell and upper bracket of JS280RT & JS450RT adopt genuine SSAB Hardox450 wear-resistant steel. The scrap shears blades are made of high-hardness wear-resistant alloy steel. Cheap competitors only paste thin wear plates partially and suffer weld cracks within 3–6 months. Cracked Hardox450 plates can be replaced free within 12 months under proper operation, official SSAB certificates are delivered for customs. Other grabs, compactors and pulverizer shells use domestic NM400 wear steel, only pulverizer teeth adopt Hardox450.
Q: What full warranty & after-sales policies are available for overseas buyers looking for a scrap shear for sale?
A: As leading hydraulic scrap shear manufacturers, we offer a global unified 10-30-824 rapid service: 10 mins customer reply, 30 mins technical plan, spare parts dispatched within 8 hours, full troubleshooting within 24 hours.
12-month: shell, upper bracket, slewing bearing, hydraulic motor, cylinders, flow divider, speed-up valve
6-month: dual valve, pinion gear, gear cover, relay
3-month: solenoid valve, handle & foot switch, pivot pins, pipelines
1-month: high-hardness alloy steel blades (only breakage & peeling covered, wear & edge curling excluded)
Consumables (bolts, bearings, grease, fuses) no warranty. Every hydraulic scrap shear unit passes 48 lab tests. Warranty only covers factory defects, no compensation for downtime & injuries.
Q: How to choose the right excavator shear attachment between JS280RT and JS450RT? What’s the overload risk?
A: JS280RT fits 20–28T excavators, max force 2000kN, cuts 16mm plate & 360# H-beam;
JS450RT fits 30–50T excavators, max force 4150kN, cuts 30mm plate & 420# heavy I-beam;
Both Hardox450 shell & alloy steel blades. Oversized excavator shear on small excavator causes shell tear & permanent hydraulic damage, voiding warranty.
Q: Service life & reusability of alloy steel scrap metal shear blades? Warranty rule for these excavator shear parts?
A: Double-sided alloy steel blades (essential excavator shear parts) can be flipped for 3000–5000 hours under normal scrap work. Only 1-month warranty for the scrap shear blade: free replacement for breakage & chunk peeling within 1 month. Uniform wear & edge curling are normal consumable loss, bulk excavator shear parts and blades available.
Q: Core gap between cheap shears and JISAN JS280RT / JS450RT as a premium china excavator shear?
A: When comparing scrap metal shears made in china, low-cost carbon steel frames with partial thin wear plates crack quickly. JS280RT & JS450RT adopt integrated Hardox450 steel plus alloy blades with SSAB certificates. Cracked plates replaced free within 12 months. Other grabs & pulverizer shells use NM400 wear steel.
Q: Warranty repair rule for cracked Hardox450 shell plates on the metal shear for excavator?
A: Free component replacement for original crack within 12 months on the metal shear for excavator. Reimburse 200 RMB welding cost for weld crack within 6 months. Welding guidance offered, all freight borne by buyer. Cracks from overload, self-modification & impact excluded.
Q: Can eagle shears cut concrete & rock? Should I use hydraulic demolition shears instead?
A: Only exposed rebar can be cut. Solid concrete & rock are prohibited to avoid fast blade wear on the demolition shears excavator setup. Steel rails & pressure vessels cannot be cut. Blade & shell damage from illegal operation fully void warranty. Use hydraulic demolition shears or pulverizer for rock demolition.
Q: How to choose between a scrap metal rotary shear and a fixed model? Are warranty terms identical?
A: Rotating model functions as a scrap metal rotary shear for indoor dismantling, fixed for open scrap yard with lower cost. Both Hardox450 shell & alloy steel blades with identical warranty. Rotating version 600–800kg heavier, slewing bearing 12-month warranty.
Q: Will warranty be shortened under 24h three-shift operation for a heavy scrap metal shear machine?
A: Full 12-month warranty for 8-hour single shift. Daily work over 8 hours halves the warranty for this heavy scrap metal shear machine. Custom thickened Hardox jaws recommended for non-stop work, lubricate every 4 hours.
Q: Can the hydraulic scrap metal shear work underwater? Will silt rust be covered?
A: Long underwater use of the hydraulic scrap metal shear is not recommended. Full cleaning & greasing required after underwater work. Rust & jamming from poor maintenance excluded. Anti-corrosion custom model available.
Q: Can faults from improper installation of the shear head for excavator be claimed?
A: New excavators fit the shear head for excavator directly, refit kits supplied for old machines. Motor & cylinder damage from self-modified oil circuit excluded. Standard installation takes 2–3 hours.
Q: Will insufficient lubrication void the warranty for a power shear or excavator shear setup?
A: Grease every 4 hours under heavy load for your power shear or excavator shear setup, full lubrication after long idle. Bearing & pin damage from lack of grease excluded.
Q: Anti-freeze steps for cold weather when operating the scrap shear with excavator for sale?
A: 5–10 mins no-load warm-up below 0℃ for the scrap shear with excavator for sale, low-temperature oil below -10℃. Cover machine outdoors. Freeze crack from poor maintenance excluded.
Q: Can rust from outdoor rain storage of the scrap metal cutting shears be claimed?
A: Anti-rust coating applied before delivery of the scrap metal cutting shears. Rust from uncovered rain storage excluded.
Q: Standard idle storage steps for the excavator metal shear?
A: Clean slag, coat the excavator metal shear Hardox shell with anti-rust oil, retract cylinders, wrap waterproof film indoors. Outdoor rust damage excluded.
Q: Which leakage & slow movement faults are covered for the hydraulic shear attachment for excavator?
A: Factory valve & cylinder defects of the hydraulic shear attachment for excavator are covered for 12 months. Damage from self-adjusted pressure & dirty oil excluded, spare parts shipped within 8 hours.
Q: Exemption for slewing bearing & motor 12-month warranty on the metal shear attachment for excavator?
A: Tooth breakage from insufficient grease excluded on the metal shear attachment for excavator; motor shaft breakage from impact & self-tuning not covered.
Q: Freight & overseas excavator shear parts lead time?
A: Free warranty excavator shear parts, all freight & tariff borne by buyer. Overseas warehouse delivery 3–7 days, sea 20–40 days, air for emergency 7–15 days.
Q: Can JS280RT & JS450RT be customized by mobile scrap shear manufacturers as an oem excavator shear?
A: Custom jaw size & hydraulic parameters available for your oem excavator shear needs. Custom frames still Hardox450, production after 3D drawing confirmation, 7–15 days lead time. As experienced mobile scrap shear manufacturers, we ensure top quality.
Q: Export order process & payment terms for a scrap metal shear for sale?
A: MOQ 1 unit when purchasing a scrap metal shear for sale or hydraulic scrap shear for sale, bulk discount over 10 sets. T/T, L/C, Western Union accepted, 30% deposit before production. Process: confirm model → issue PI → inspection → shipment.
Q: Does export document for this scrap shearing machine include Hardox certificate?
A: Full docs for this scrap shearing machine including invoice, B/L, CO, RCEP, CE, SSAB Hardox certificate & factory inspection report for global customs.
Q: Will sea transit rust be covered for the scrap shear for excavator?
A: Full anti-rust packing with desiccants for the scrap shear for excavator. Rust from post-delivery outdoor storage excluded.
Q: Full warranty claim process for the scrap metal shear machine?
A: 1. Provide serial number of the scrap metal shear machine, fault video & hour record; 2. Judge factory or man-made damage; 3. Free spare parts & video guide for eligible claims; 4. 200 RMB welding reimbursement within 6 months; 5. Cost-price consumables offer.
Q: Does mentioning Sany CAT mean official cooperation for this excavator scrap metal shear?
A: Brands only show JS280RT/JS450RT compatibility as an excavator scrap metal shear, no authorization or endorsement, no trademark infringement.

CTA Banner

Contact Us

What model and tonnage of excavator do you need?

Request a Quote



Please Contact Us!

FAQs aboutHydraulic Eagle Shear-JS550RT

How to confirm the eagle shear matches my excavator perfectly?

JIS holds full hydraulic database for Sany, XCMG, CAT, Komatsu and all mainstream brands. Our technical team will match JS280RT or JS450RT according to your excavator tonnage, calibrate pressure, flow and pin distance precisely to prevent host overheating

What full warranty & after-sales policies are available for overseas buyers?

Global unified 10-30-824 rapid service: 10 mins customer reply, 30 mins technical plan, spare parts dispatched within 8 hours, full troubleshooting within 24 hours.12-month: shell, upper bracket, slewing bearing, hydraulic motor, cylinders, flow divider,

Full material classification statement?

4.1. Eagle shear & heavy double shear shell: genuine SSAB Hardox450;5.Pulverizer only teeth Hardox450, shell NM400;6.All other attachments domestic NM400 wear steel;7.All cutting attachments equipped with high-hardness alloy steel blades.

Can eagle shear cut concrete & rock? Will illegal operation void warranty?

Only exposed rebar can be cut. Solid concrete & rock are prohibited to avoid fast blade wear. Steel rails & pressure vessels cannot be cut. Blade & shell damage from illegal operation fully void warranty. Use pulverizer or breaker for rock dem

Overload void full warranty?

Operation beyond rated tonnage fully void all warranty rights.

Will warranty be shortened under 24h three-shift operation?

Full 12-month warranty for 8-hour single shift. Daily work over 8 hours halves warranty. Custom thickened Hardox jaws recommended for non-stop work, lubricate every 4 hours.
