Why Choose JISAN Concrete Crusher
The trusted selection of customers from over 50 countries globally
  • Official Hardox® MemberOfficial Hardox® MemberOfficial Hardox® Member

    Wear zones feature Hardox® 500/600, extending life by $3\times$. High material toughness ensures zero structural deformation under aggressive demolition.

  • Large Opening & Superior BiteLarge Opening & Superior BiteLarge Opening & Superior Bite

    Wide jaw geometry designed for heavy beams/columns, combined with synchronized high-displacement cylinders, ensures rapid crushing of high-standard RC structures.

  • $2.4s$ Ultra-Fast Cycle$2.4s$ Ultra-Fast Cycle$2.4s$ Ultra-Fast Cycle

    Patented energy recovery valve tech reduces cycle to $2.4s$. Boost your hourly output by 30%+ compared to industry averages.

  • Universal OEM CompatibilityUniversal OEM CompatibilityUniversal OEM Compatibility

    Beyond Sany/XCMG partnerships, we provide seamless integration for 15+ global brands like CAT, Komatsu, and Volvo.

Certifications & Quality Lab
Our fully equipped quality lab performs comprehensive testing on every unit
Official Certifications
  • CE certified for EU market compliance
  • ISO 9001:2015 quality management system
  • Hardox® Wear Parts verified supplier
  • SGS-tested for material strength and performance
In-House Quality Control Lab
  • With over 300 employees and a team of 40+ senior engineers, we have been dedicated to the research and development of accessories for 16 years.
  • 53,000 square meters of production base, equipped with advanced testing equipment.
  • Each concrete crusher must pass 1000 consecutive shear tests before leaving the factory.
Overseas Warehouse
  • Spare parts warehouses have been established in Thailand, Japan, the United States, and Australia.
  • Respond to global after-sales needs within 48 hours.
  • The overseas warehouse is under continuous layout.
            Unique opening design allows for rapid material discharge.

            Product Showcase

            JSHP280 Heavy-Duty Concrete Cr...

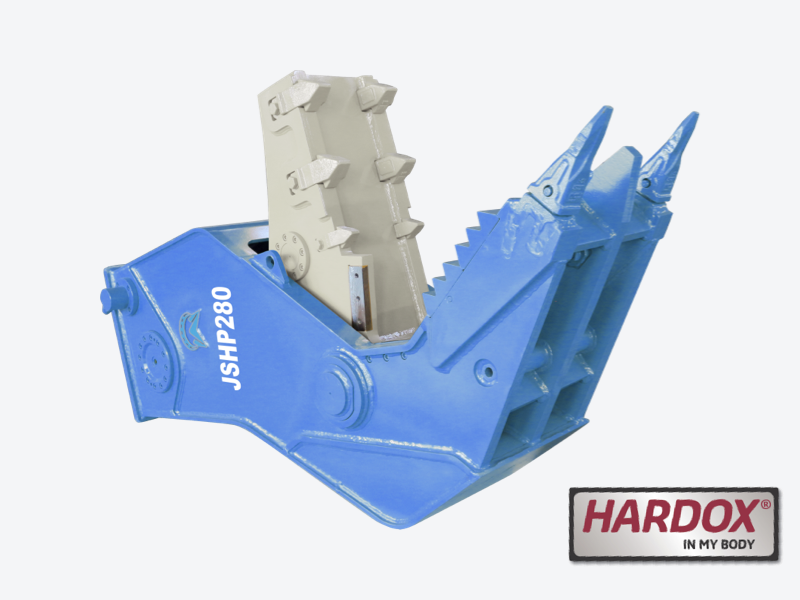

            JSHP280 Heavy-Duty Concrete Crusher

            Heavy-duty concrete crusher | Compatible with 20–30 ton excavators | High-strength concrete crushing


            ✔   High-strength, heavy-duty concrete walls

            ✔   Bridge demolition and large-scale reinforced concrete structure dismantling

            View More
            WHAT ARE YOU LOOKING FOR?
            *
            This field is required
            Total quantity you need
            *
            This field is required
            *
            This field is required
            Email format error
            Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
            This field is required
            Telephone information is wrong!
            Send Message
            JSMP200 Mechanical Concrete Cr...

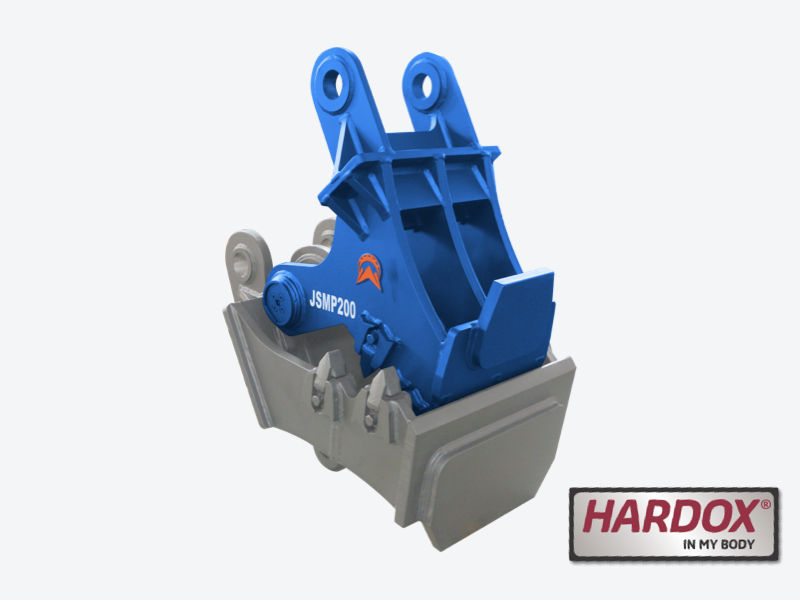

            JSMP200 Mechanical Concrete Crusher

            Purely mechanical positioning type | Compatible with 15–25 ton excavators | Non-hydraulic; economical and durable


            ✔   Preferred choice for users sensitive to hydraulic maintenance requirements

            ✔   Suitable for long-term continuous operation with extended maintenance intervals

            ✔   Ideal for high-temperature or harsh environments (no risk of hydraulic oil leakage)

            View More
            WHAT ARE YOU LOOKING FOR?
            *
            This field is required
            Total quantity you need
            *
            This field is required
            *
            This field is required
            Email format error
            Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
            This field is required
            Telephone information is wrong!
            Send Message
            JSP40C Concrete Pulverizer (In...

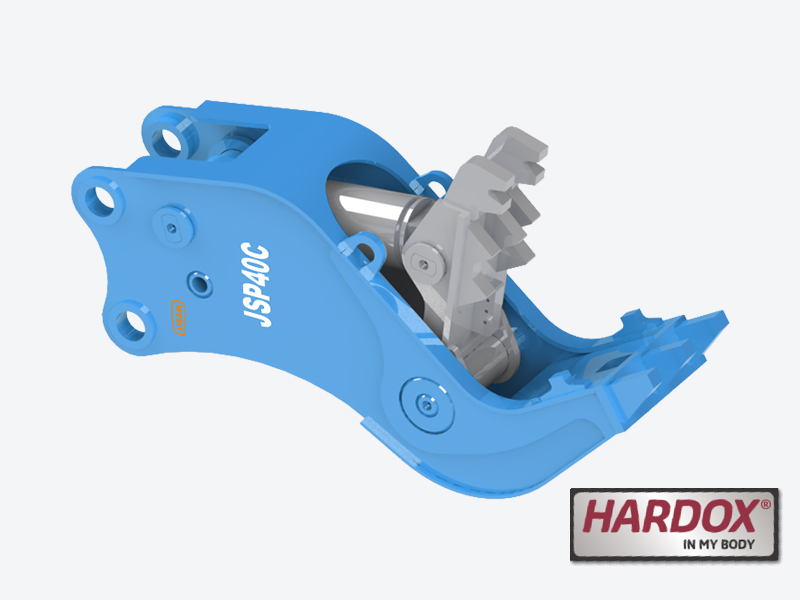

            JSP40C Concrete Pulverizer (Inverted Cylinder)

            Inverted cylinder design for protection | Compatible with 4–6 ton excavators


            ✔   Inverted cylinder rod design effectively prevents collision damage

            ✔   Suitable for various concrete pulverization tasks

            View More
            WHAT ARE YOU LOOKING FOR?
            *
            This field is required
            Total quantity you need
            *
            This field is required
            *
            This field is required
            Email format error
            Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
            This field is required
            Telephone information is wrong!
            Send Message
            JSP80C Concrete Pulverizer (In...

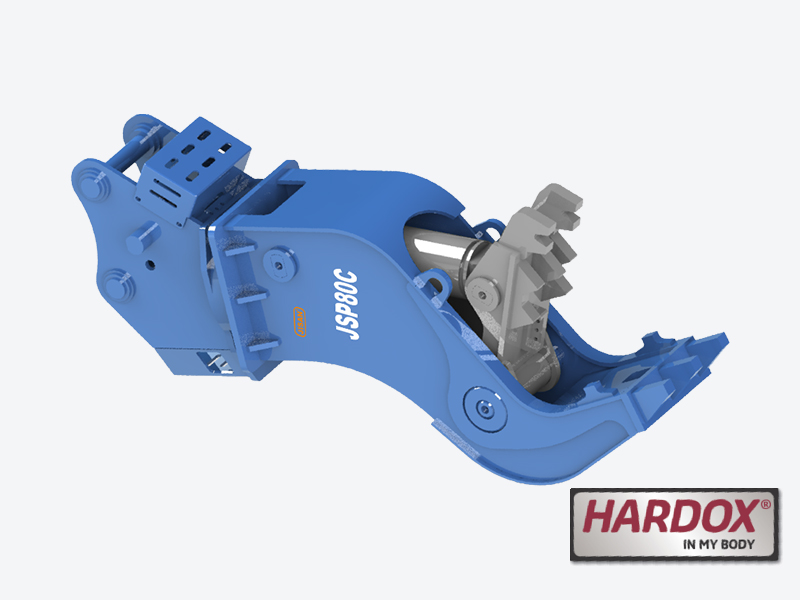

            JSP80C Concrete Pulverizer (Inverted Cylinder)

            Inverted cylinder design for protection | Compatible with 6–9 ton excavators


            ✔   Inverted cylinder rod design effectively prevents collision damage

            ✔   Suitable for various concrete pulverization tasks

            View More
            WHAT ARE YOU LOOKING FOR?
            *
            This field is required
            Total quantity you need
            *
            This field is required
            *
            This field is required
            Email format error
            Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
            This field is required
            Telephone information is wrong!
            Send Message
            VIEW ALL PRODUCTS

            Twin-cylinder heavy-duty shears - shredder type (JSDH series)

            Combining shearing and shredding functions, it is suitable for demolishing mixed materials such as reinforced concrete. Note: M = mechanical rotation.




            Model No.Excavator Weight (ton)

            Weight

            (kg)

            Pressure

            (bar)

            Flow rate

            (L/min)

            Opening

            A (mm)

            Length

            B (mm)

            Blade

            D (mm)

            		Shearing force (kN)Crushing force (kN)Rotation diameter (mm)Compatible Carrier Brands
            JSDH806-953524015063014661351200670/430360AIRMAN, CASE, CATERPILLAR, DAEWOO, DOOSAN, HITACHI, HYUNDAI, IHI, JCB, JOHN DEERE, KATO, KOBELCO, KOMATSU, KUBOTA, LINKBELT, NAGANO, SUMITOMO, TAKEUCHI, VOLVO, XCG, YANMAR, YUCHAI, ZOOMLION
            JSDH80M6-951024015063013631351200670/430360
            JSDH22012-181300300250900195918019001120/720593CASE, CATERPILLAR, DAEWOO, HELLA, HITACHI, HYUNDAI, IHI, JCB, JOHN DEERE, KATO, KOBELCO, KOMATSU, LINKBELT, SAMSUNG, SUMITOMO, TAKEUCHI, VOLVO, YUCHAI
            JSDH220M12-181280300250900190418019001120/720593
            JSDH26020-3021903202801100228920024001460/980752CASE, CATERPILLAR, DAEWOO, DOOSAN, HELLA, HITACHI, HYUNDAI, JCB, JOHN DEERE, KATO, KOBELCO, KOMATSU, LIEBHERR, LINKBELT, SAMSUNG, SUMITOMO, VOLVO
            JSDH260M20-3021003202801100226920024001460/980752
            JSDH29025-3524703202801100228920024001610/1080752CASE, CATERPILLAR, DAEWOO, DOOSAN, HELLA, HITACHI, HYUNDAI, JCB, JOHN DEERE, KATO, KOBELCO, KOMATSU, LINKBELT, SAMSUNG, SUMITOMO, VOLVO
            JSDH290M25-3524003202801100226920024001610/1080752
            JSDH38030-4539403203501550290024035002110/1380806CASE, CATERPILLAR, DAEWOO, DOOSAN, HITACHI, HYUNDAI, JOHN DEERE, KATO, KOBELCO, KOMATSU, LINKBELT, SAMSUNG, SUMITOMO, VOLVO
            JSDH380M30-4539403203501550290024035002110/1380806




            Multi-functional all-in-one (JSMC series)

            Model No.Excavator Weight (ton)

            Weight

            (kg)

            Pressure

            (bar)

            Flow rate

            (L/min)

            Opening

            A (mm)

            Length

            B (mm)

            Blade

            D (mm)

            		Shearing force (kN)Crushing force (kN)Rotation diameter (mm)

            Compatible

            Carrier Brands

            JSMC28020-302400320280102022253601850760752CASE, CATERPILLAR, DAEWOO, DOOSAN, HELLA, HITACHI, HYUNDAI, JCB, JOHN DEERE, KATO, KOBELCO, KOMATSU, LIEBHERR, LINKBELT, SAMSUNG, SUMITOMO, VOLVO


            Demolition shears (JSDS series)

            Single-cylinder design, suitable for dismantling steel structure plants such as chemical plants and steel mills. Note: M = mechanical rotation.



            Model No.Excavator Weight (ton)Weight (kg)Pressure (bar)Flow rate (L/min)Opening A (mm)Height B (mm)Width C (mm)Blade D (mm)Crushing force (kN)Shearing force (kN)Rotation diameter (mm)

            Compatible

            Carrier Brands

            JSDS806-93602501203901280850100200500360AIRMAN, CASE, CATERPILLAR, DAEWOO, DOOSAN, HITACHI, HYUNDAI, IHI, JCB, JOHN DEERE, KATO, KOBELCO, KOMATSU, KUBOTA, LINKBELT, NAGANO, SUMITOMO, TAKEUCHI, VOLVO, XCG, YANMAR, YUCHAI, ZOOMLION
            JSDS80M6-93002501203901280850100200500360
            JSDS15012-181000280200570175611461508001650593CASE, CATERPILLAR, DAEWOO, DOOSAN, HELLA, HITACHI, HYUNDAI, IHI, JCB, JOHN DEERE, KATO, KOBELCO, KOMATSU, LINKBELT, SAMSUNG, SUMITOMO, TAKEUCHI, VOLVO, YUCHAI
            JSDS150M12-18950280200570175611461508001650593
            JSDS20020-2817503002508201980140018010002100752CASE, CATERPILLAR, DAEWOO, DOOSAN, HELLA, HITACHI, HYUNDAI, JCB, JOHN DEERE, KATO, KOBELCO, KOMATSU, LIEBHERR, SAMSUNG, SUMITOMO, VOLVO
            JSDS200M20-2817003002508201980140018010002100752
            JSDS30030-3823203002509002120150018012002600752CASE, CATERPILLAR, DAEWOO, DOOSAN, HITACHI, HYUNDAI, JOHN DEERE, KATO, KOBELCO, KOMATSU, LINKBELT, SAMSUNG, SUMITOMO, VOLVO
            JSDS300M30-3822503002509002120150018012002600752




            Miniature demolition shears (JSMS series)



            Model No.Excavator Weight (ton)Weight (kg)Pressure (bar)Flow rate (L/min)Opening A (mm)Height B (mm)Width C (mm)Blade D (mm)Shearing force (kN)Rotation diameter (mm)

            Compatible

            Carrier Brands

            JSMS20M1.5-2.5135180302901000660100200-AIRMAN, BOBCAT, CASE, CATERPILLAR, DAEWOO, DOOSAN, HITACHI, HYUNDAI, IHI, JCB, KOBELCO, KOMATSU, KUBOTA, LINKBELT, NAGANO, S & B, TAKEUCHI, YANMAR, YUCHAI, SUNWARD
            JSMS40M3-5220200403501148785100225-AIRMAN, BOBCAT, CASE, CATERPILLAR, DAEWOO, FORD, HIGHLAND, HITACHI, IHI, JCB, KOBELCO, KOMATSU, KUBOTA, LINKBELT, NAGANO, NEW HOLLAND, NISSAN, SUMITOMO, SUNWARD, TAKEUCHI, VOLVO, YANMAR, YUCHAI, BOBCAT, SUNWARD
            JSMS80M6-93802601004201382895120500-AIRMAN, CATERPILLAR, DAEWOO, DOOSAN, HITACHI, HYUNDAI, IHI, JCB, JOHN DEERE, KATO, KOBELCO, KOMATSU, KUBOTA, LINKBELT, NAGANO, SUMITOMO, TAKEUCHI, VOLVO, XCG, YANMAR, YUCHAI, ZOOMLION
            JSMS26020-3024503203501000255015101601320752CASE, CATERPILLAR, DAEWOO, DOOSAN, HELLA, HITACHI, HYUNDAI, JCB, JOHN DEERE, KATO, KOBELCO, KOMATSU, LIEBHERR, LINKBELT, SAMSUNG, SUMITOMO, VOLVO
            JSMS260M20-3024003203501000255015101601320752

            Products
            View More
            JISAN
            Our Solutions
            01
            Reinforced concrete demolition
            1
            02
            Small and medium-sized construction and demolition
            2
            03
            Steel structure factory building demolition
            3
            04
            Multifunctional integrated
            4
            05
            Miniature demolition
            5
            01
            Reinforced concrete demolition
            Large-scale shearing unit, capable of both shearing reinforcing steel and crushing concrete.




            FAQ

            • Q: How long do the Hardox blades last?
              A: Blade life depends on usage intensity. Under normal heavy-duty use, our Hardox blades can last 3-6 months before resharpening. We also provide replacement blades and wear parts at competitive prices.
            • Q: Do you offer OEM/ODM services?
              A: Yes. We provide full OEM/ODM support, including custom jaw sizes, mounting brackets, and hydraulic configurations to meet specific project or regional requirements.
            • Q: What after-sales support do you provide?
              A: All JISAN shears come with a 18-month warranty. We offer global spare parts shipping, 24/7 technical support, and remote troubleshooting to minimize downtime for your operations.
            • Q: Can you provide installation and operation manuals in English?
              A: Yes. Every unit includes a detailed English installation, operation, and maintenance manual, along with video tutorials for setup and basic troubleshooting.
