Hardox® Steel Build
Made of Swedish Hardox® steel: lightweight and wear-resistant
Multifunctional & Integrated | Compatible with 20–30 ton excavators | 3-in-1: Shearing, Crushing, and Demolition
✔ Reinforced concrete demolition and crushing
✔ Demolition of chemical plants, steel mills, and steel-structure facilities
✔ Concrete block recycling and reuse
✔ Highly recommended for repeat customers: a versatile 3-in-1 tool that does the work of multiple machines.
| Technical Specifications | |
|---|---|
| Item / Unit | JSMC280 (Multifunctional Integrated Crusher-Shear) |
| Applicable Tonnage (tons) | 20–30 |
| Weight (kg) | 2400 |
| Jaw Opening A (mm) | 1020 |
| Length B (mm) | 2225 |
| Blade D (mm) | 360 |
| Shearing Force (kN) | 1850 |
| Crushing Force (kN) | 760 |
| Operating Pressure (bar) | 320 |
| Flow Rate (lpm) | 280 |
| Rotation Diameter (mm) | 752 |
Note: "-" in the table indicates that the data is not provided or is not applicable in the original figure.
Engineered for performance, built for durability, designed for efficiency
Made of Swedish Hardox® steel: lightweight and wear-resistant
Pins made of 42CrMo alloy steel

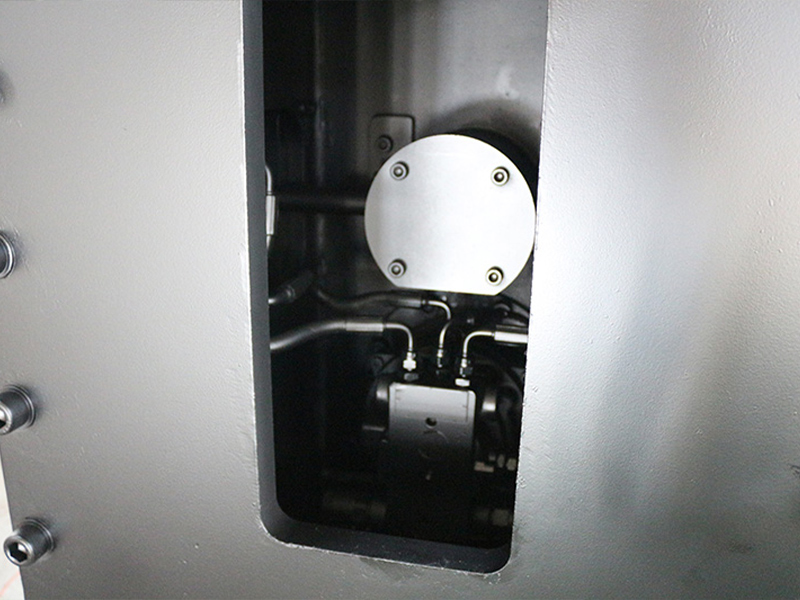

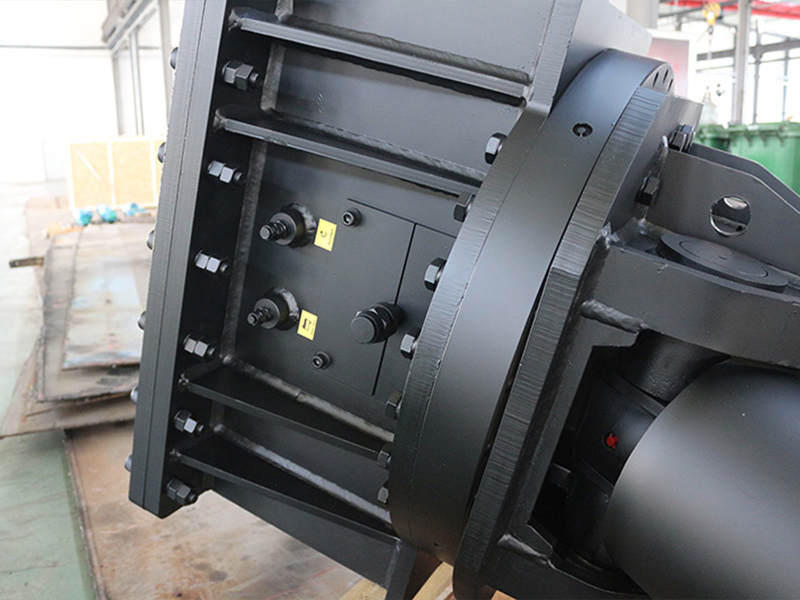

Rotating mechanism features an imported motor for greater operational flexibility

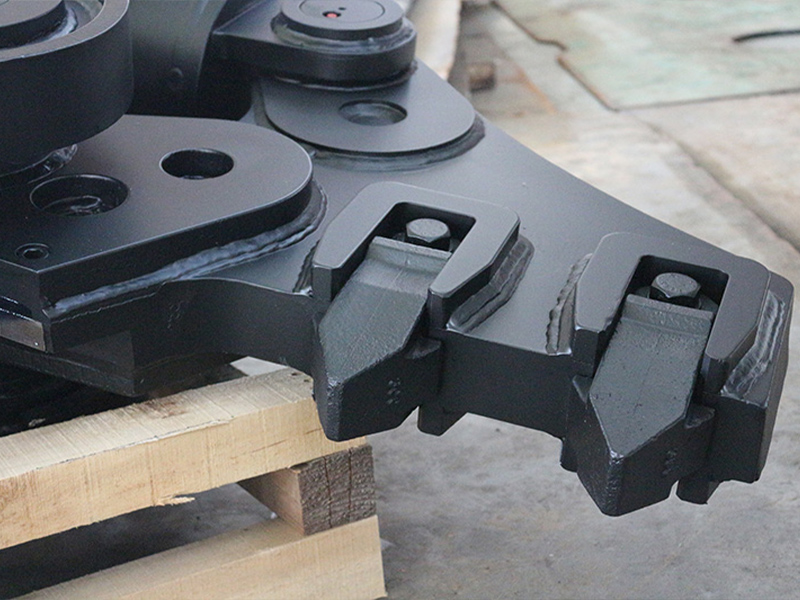

Upper and lower wear-resistant jaw plates are fully replaceable
Optional differential speed valve increases no-load stroke speed by nearly 50%
Optional DC magnetic chuck enables multifunctional operation (crushing plus loading/unloading)
Versatile 3-in-1 functionality: shearing, crushing, and demolition
Optional magnetic chuck attachment allows for railway wagon cleanup applications
