AIRMAN AX90 (9t) hydraulic demolition shear
Single-cylinder demolition shear (360° rotation) | Fits 6–9 ton excavators | Crushing force: 200 kN; Shearing force: 500 kN
✔ Reinforced concrete demolition and crushing
✔ Demolition of chemical plants, steel mills, and steel-structure industrial facilities
✔ Recycling and reuse of concrete blocks
✔ Demolition of large-scale steel structures at chemical plants and steel mills
| Technical Specifications | |
|---|---|
| Item / Unit | JSDS80 (Demolition Shear) |
| Applicable Tonnage (ton) | 6-9 |
| Weight (kg) | 360 |
| Jaw Opening A (mm) | 390 |
| Blade length D (mm) | 100 |
| Height B (mm) | 1280 |
| Width C (mm) | 850 |
| Crushing Force (kN) | 200 |
| Shearing Force (kN) | 500 |
| Operating Pressure (bar) | 250 |
| Flow Rate (lpm) | 120 |
| Rotation Diameter (mm) | 360 |
Note: "-" in the table indicates that the data is not provided or is not applicable in the original figure.
Below are compatible excavator carrier models for our hydraulic demolition shear. Depending on model and application, this attachment may also be referred to as rotating demolition shear, hydraulic shear or rotating hydraulic shear.
AIRMAN AX90 (9t) hydraulic demolition shear
CASE CX75SR (7.5t) / CX80 (8t) rotating demolition shear
CATERPILLAR 307/307B/307D/E70B (7t) / 308/308B/308D CR (8t) hydraulic shear
DAEWOO S75-V (7t) rotating hydraulic shear
DOOSAN DX55/60R (6t) / DX80 (8t) hydraulic demolition shear
HITACHI EX/ZX60-90 & UE/UH Series (6-9t) rotating demolition shear
Engineered for performance, built for durability, designed for efficiency
Single-cylinder design suitable for steel structure plant demolition
Blades made of Swedish Hardox® steel
Imported rotation motor (non-M type)

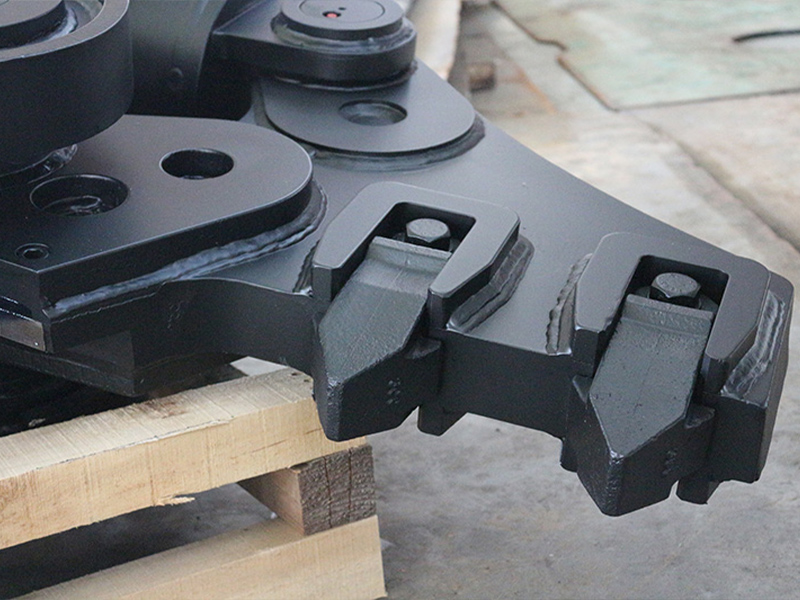

Wear-resistant tooth plate allows for complete replacement
Equipped with a regeneration valve to accelerate the no-load stroke
