CASE CX330B (33t) / CX350B (35t) / 9050B (30t) hydraulic demolition shear
Single-cylinder demolition shear (360° rotation) | Fits 30–38 ton excavators | Crushing force: 1200 kN; Shearing force: 2600 kN
✔ Reinforced concrete demolition and crushing
✔ Demolition of chemical plants, steel mills, and steel-structure industrial facilities
✔ Recycling and reuse of concrete blocks
✔ Demolition of large-scale steel structures at chemical plants and steel mills
| Technical Specifications | |
|---|---|
| Item / Unit | JSDS300 (Demolition Shear) |
| Applicable Tonnage (ton) | 30-38 |
| Weight (kg) | 2320 |
| Jaw Opening A (mm) | 900 |
| Blade length D (mm) | 180 |
| Height B (mm) | 2120 |
| Width C (mm) | 1500 |
| Crushing Force (kN) | 1200 |
| Shearing Force (kN) | 2600 |
| Operating Pressure (bar) | 300 |
| Flow Rate (lpm) | 250 |
| Rotation Diameter (mm) | 752 |
Note: "-" in the table indicates that the data is not provided or is not applicable in the original figure.
Below are compatible excavator carrier models for our hydraulic demolition shear. Depending on model and application, this attachment may also be referred to as rotating demolition shear, hydraulic shear or rotating hydraulic shear.
CASE CX330B (33t) / CX350B (35t) / 9050B (30t) hydraulic demolition shear
CATERPILLAR 330 Series (30-33t) / 336D (36t) / EL300B (30t) rotating demolition shear
DAEWOO S300-S370 Series (30-34t) hydraulic shear
DOOSAN DX300/DX340 Series (30-35t) rotating hydraulic shear
HITACHI EX/ZX300-370 & UH143 Series (30-37t) hydraulic demolition shear
HYUNDAI R320-R380 Series (32-38t) rotating demolition shear
Engineered for performance, built for durability, designed for efficiency

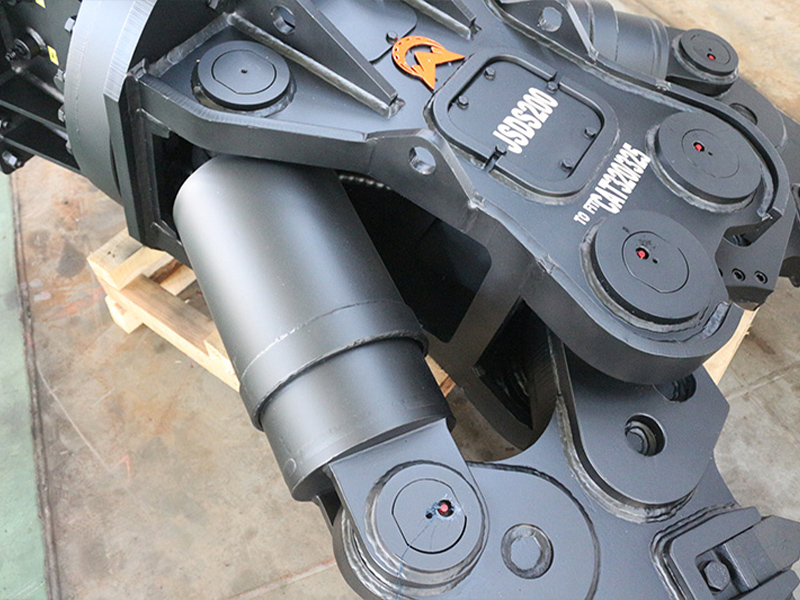

Single-cylinder design suitable for steel structure plant demolition
Blades made of Swedish Hardox® steel

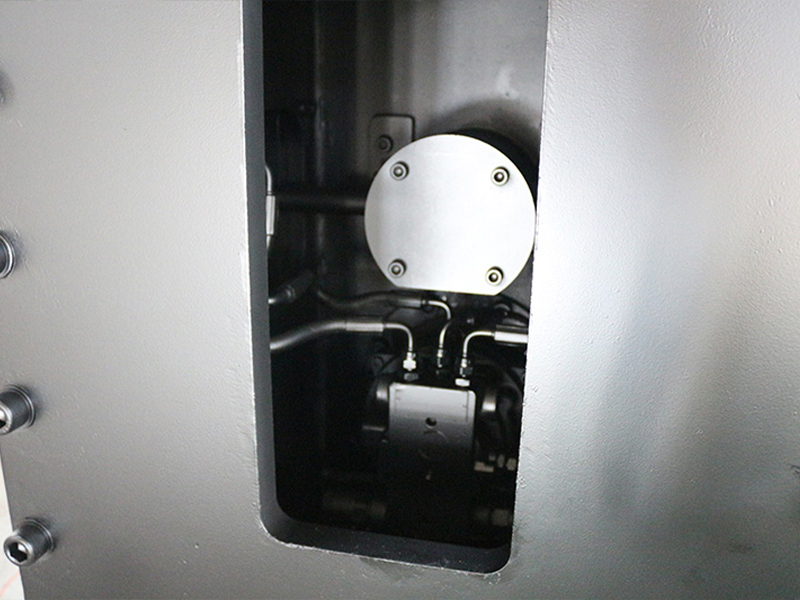

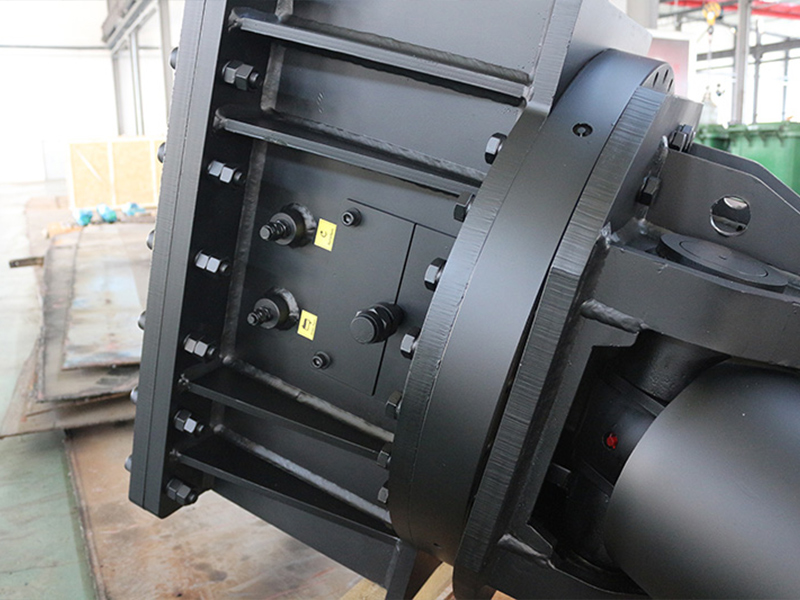

Imported rotation motor (non-M type)

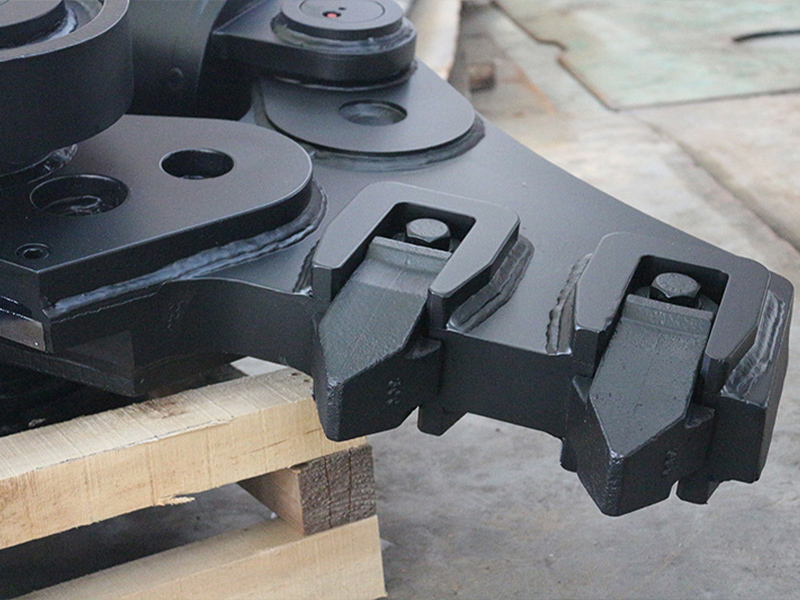

Wear-resistant tooth plate allows for complete replacement
Equipped with a regeneration valve to accelerate the no-load stroke
