CASE
CASE CX130/CX135/CX160 Series (13-16t) hydraulic demolition shear
Single-cylinder demolition shear (360° rotation) | Fits 12–18 ton excavators | Crushing force: 800 kN; Shearing force: 1650 kN
✔ Reinforced concrete demolition and crushing
✔ Demolition of chemical plants, steel mills, and steel-structure industrial facilities
✔ Recycling and reuse of concrete blocks
✔ Demolition of large-scale steel structures at chemical plants and steel mills
| Technical Specifications | |
|---|---|
| Item / Unit | JSDS150 (Demolition Shear) |
| Applicable Tonnage (ton) | 12-18 |
| Weight (kg) | 1000 |
| Jaw Opening A (mm) | 570 |
| Blade length D (mm) | 150 |
| Height B (mm) | 1756 |
| Width C (mm) | 1146 |
| Crushing Force (kN) | 800 |
| Shearing Force (kN) | 1650 |
| Operating Pressure (bar) | 280 |
| Flow Rate (lpm) | 200 |
| Rotation Diameter (mm) | 593 |
Note: "-" in the table indicates that the data is not provided or is not applicable in the original figure.
Below are compatible excavator carrier models for our hydraulic demolition shear. Depending on model and application, this attachment may also be referred to as rotating demolition shear, hydraulic shear or rotating hydraulic shear.
CASE CX130/CX135/CX160 Series (13-16t) hydraulic demolition shear
CATERPILLAR 311-315, 215, E120B/E180, M313D Series (12-18t) rotating demolition shear
DAEWOO S130-S180 Series (13-18t) hydraulic shear
DOOSAN DX140/DX180 Series (14-18t) rotating hydraulic shear
HELLA 130W (13t) hydraulic demolition shear
HITACHI EX/ZX120-160 & UH Series (12-16t) rotating demolition shear
Engineered for performance, built for durability, designed for efficiency

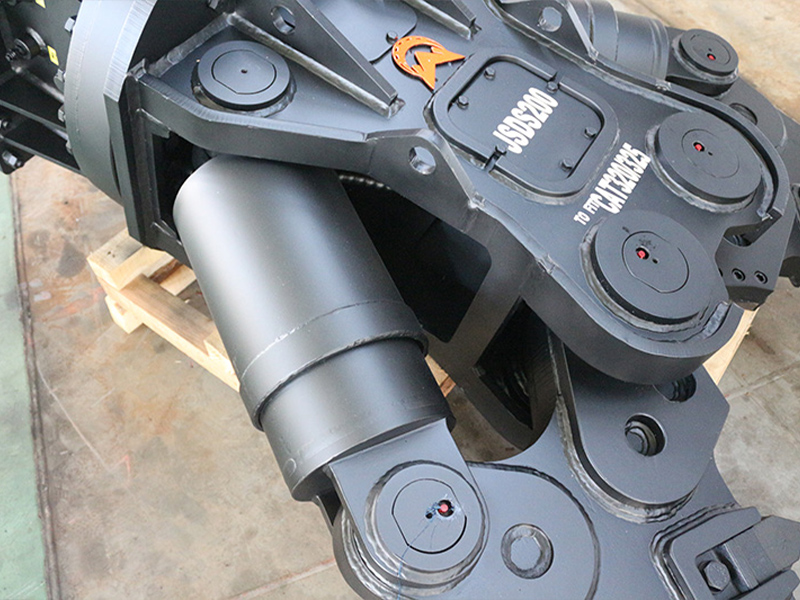

Single-cylinder design suitable for steel structure plant demolition
Blades made of Swedish Hardox® steel

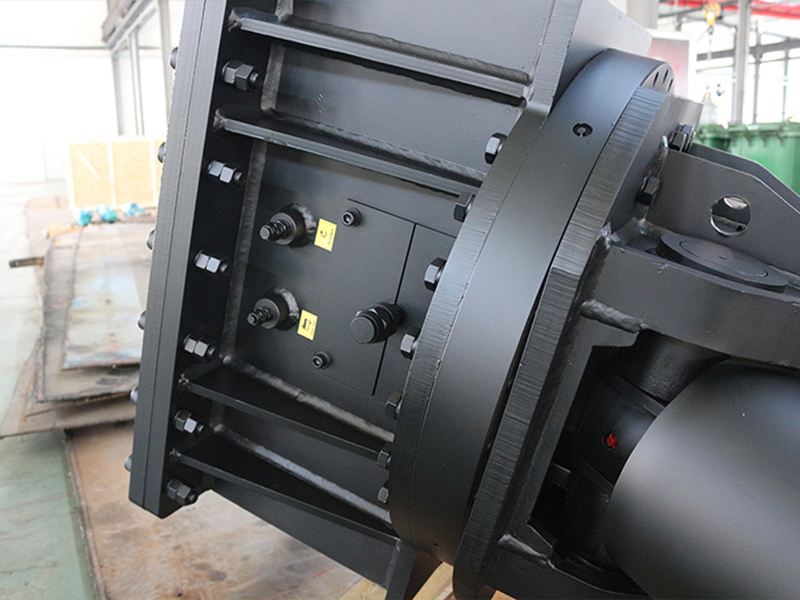

Imported rotation motor (non-M type)

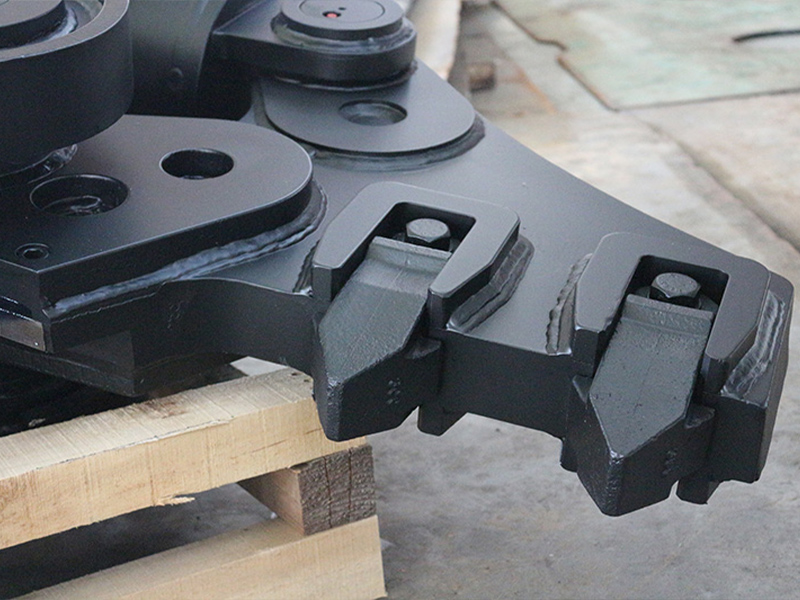

Wear-resistant tooth plate allows for complete replacement

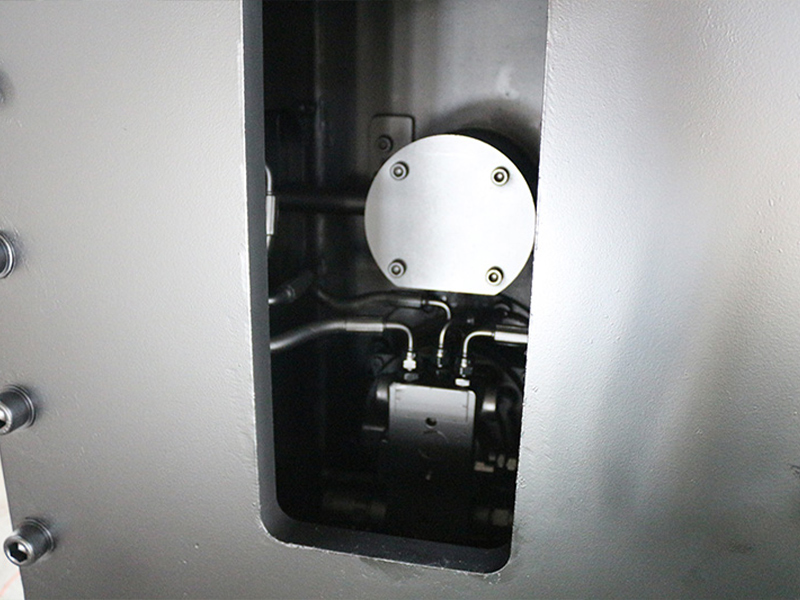

Equipped with a regeneration valve to accelerate the no-load stroke
