01
AIRMAN
AIRMAN AX90 (9t) hydraulic pulverizer
Dual-cylinder shearing & pulverizing (360° hydraulic rotation) | Fits 6–9 ton excavators | Shearing force: 1200 kN; Pulverizing force: 670/430 kN
✔ Reinforced concrete demolition and pulverization
✔ Demolition of chemical plants, steel mills, and steel-structure facilities
✔ Concrete block recycling and reuse
✔ Dual-function integration: shears rebar and pulverizes concrete
| Technical Specifications | |
|---|---|
| Item / Unit | JSDH80 (Dual-Cylinder Pulverizer/Shear) |
| Applicable Tonnage (ton) | 6-9 |
| Weight (kg) | 535 |
| Jaw Opening A (mm) | 630 |
| Length B (mm) | 1466 |
| Blade (mm) | 135 |
| Shearing Force (kN) | 1200 |
| Crushing Force (kN) | 670/430 |
| Operating Pressure (bar) | 240 |
| Flow Rate (lpm) | 150 |
| Rotation Diameter (mm) | 360 |
Note: "-" in the table indicates that the data is not provided or is not applicable in the original figure.
Below are compatible excavator carrier models for our hydraulic pulverizer. Depending on model and application, this attachment may also be referred to as rotating hydraulic pulverizer, hydraulic pulverizers or rotational hydraulic pulverizer.
AIRMAN AX90 (9t) hydraulic pulverizer
CASE CX75SR (7.5t) / CX80 (8t) rotating hydraulic pulverizer
CATERPILLAR 307/307B/307D/E70B (7t) / 308/308B/308D CR (8t) hydraulic pulverizers
DAEWOO S75-V (7t) rotational hydraulic pulverizer
DOOSAN DX55/60R (6t) / DX80 (8t) hydraulic pulverizer
HITACHI EX/ZX60-90 & UE/UH Series (6-9t) rotating hydraulic pulverizer
Engineered for performance, built for durability, designed for efficiency
Made of Swedish Hardox® steel: lightweight and wear-resistant
Pins made of 42CrMo alloy steel

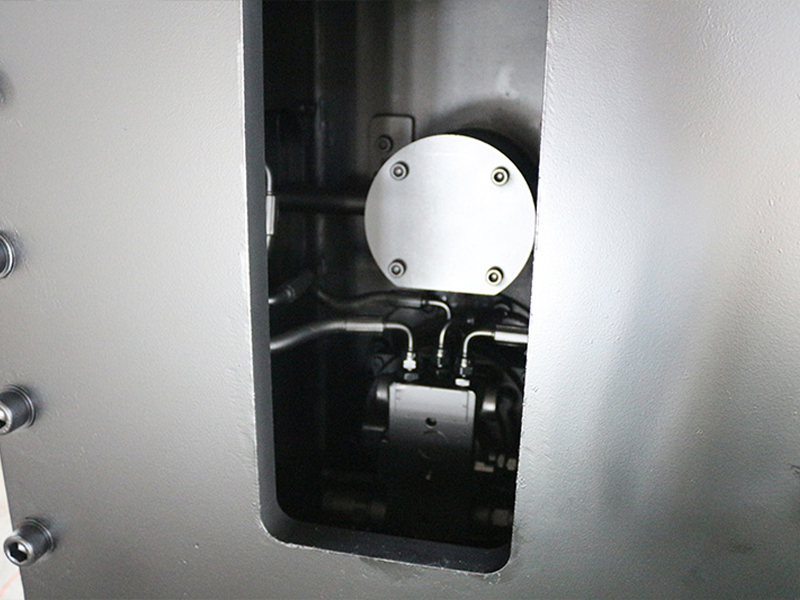

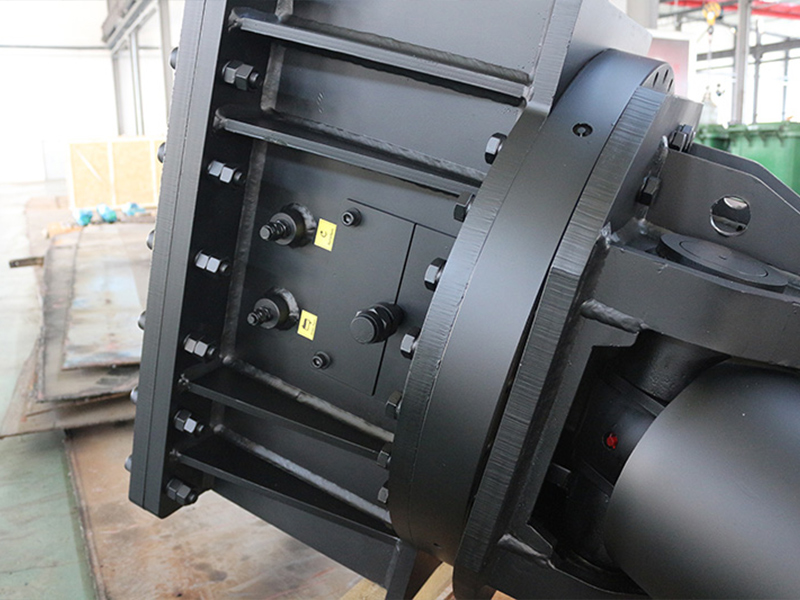

Rotating mechanism features an imported motor for greater operational flexibility

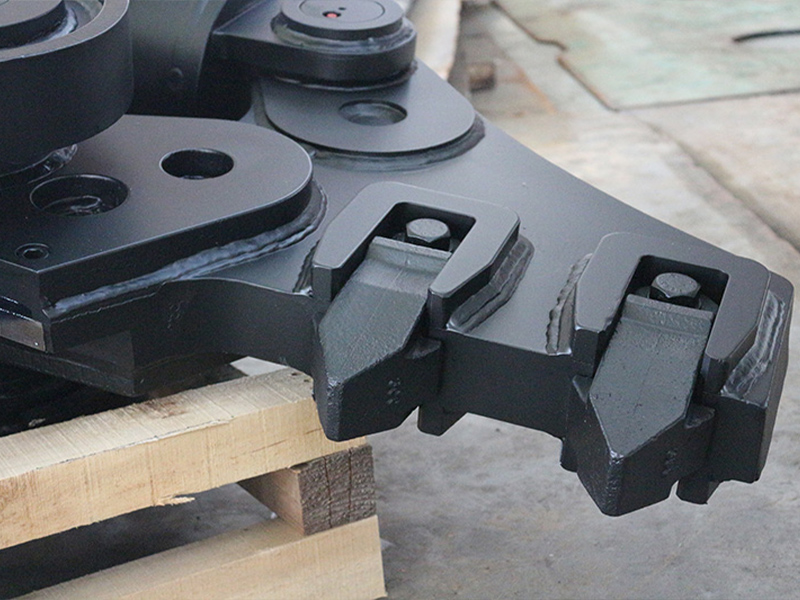

Upper and lower wear-resistant jaw plates are fully replaceable
Optional differential acceleration valve increases no-load stroke speed by nearly 50%
Optional DC electromagnetic chuck enables multifunctional operation (crushing plus loading/unloading)
