01
CASE
CASE CX330B (33t) / CX350B (35t) / 9050B (30t) hydraulic pulverizer
Dual-cylinder shearing & crushing (360° hydraulic rotation) | Compatible with 30–45 ton excavators | Shearing force: 3500 kN; Crushing force: 2110/1380 kN
✔ Reinforced concrete demolition and pulverization
✔ Demolition of chemical plants, steel mills, and steel-structure facilities
✔ Concrete block recycling and reuse
✔ Dual-function integration: cuts rebar and crushes concrete
| Technical Specifications | |
|---|---|
| Item / Unit | JSDH380 (Dual-Cylinder Pulverizer-Shear) |
| Applicable Tonnage (ton) | 30-45 |
| Weight (kg) | 3940 |
| Jaw Opening A (mm) | 1550 |
| Length B (mm) | 2900 |
| Blade (mm) | 240 |
| Shearing Force (kN) | 3500 |
| Crushing Force (kN) | 2110/1380 |
| Operating Pressure (bar) | 320 |
| Flow Rate (lpm) | 350 |
| Rotation Diameter (mm) | 806 |
Note: "-" in the table indicates that the data is not provided or is not applicable in the original figure.
Below are compatible excavator carrier models for our hydraulic pulverizer. Depending on model and application, this attachment may also be referred to as rotating hydraulic pulverizer, hydraulic pulverizers or rotational hydraulic pulverizer.
CASE CX330B (33t) / CX350B (35t) / 9050B (30t) hydraulic pulverizer
CATERPILLAR 330 Series (30-33t) / 336D (36t) / 345 Series (45t) / EL300B (30t) rotating hydraulic pulverizer
DAEWOO S300-S370 Series (30-34t) / S400-S450 Series (40-45t) hydraulic pulverizers
DOOSAN DX300/DX340LC (30-35t) / DX420LC (40t) rotational hydraulic pulverizer
HITACHI EX/ZX300-450 & UH143/WH04D Series (30-45t) hydraulic pulverizer
HYUNDAI R320-R380 Series (32-38t) / R420/R450LC Series (45t) rotating hydraulic pulverizer
Engineered for performance, built for durability, designed for efficiency
Made of Swedish Hardox® steel: lightweight and wear-resistant
Pins made of 42CrMo alloy steel

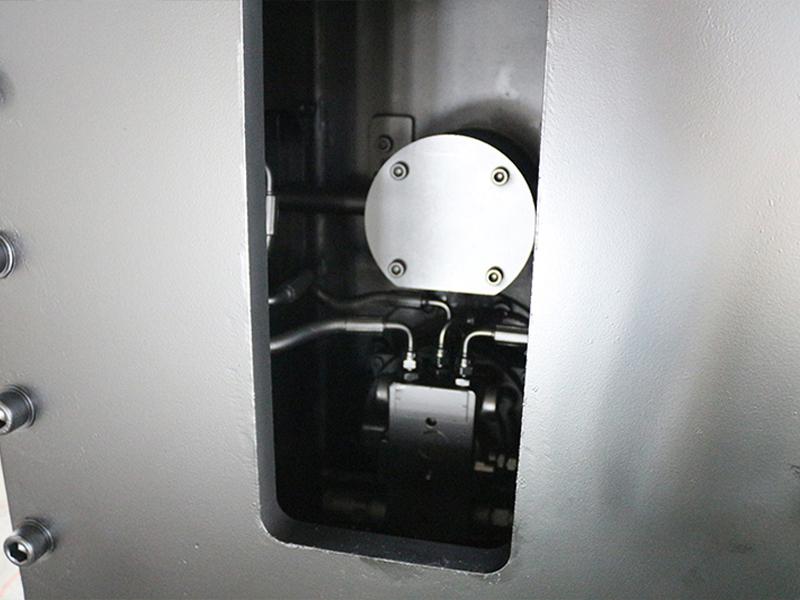

Rotating mechanism features an imported motor for greater operational flexibility

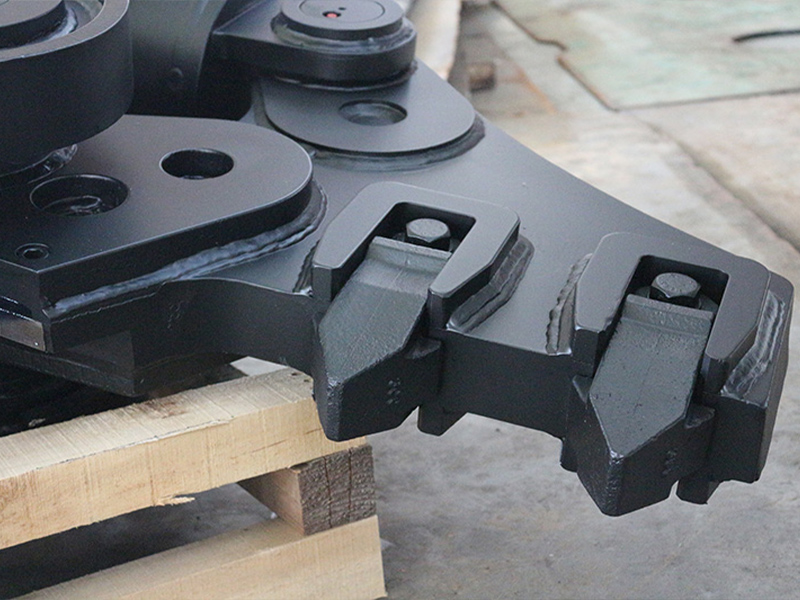

Upper and lower wear-resistant jaw plates are fully replaceable
Optional differential acceleration valve increases no-load stroke speed by nearly 50%
Optional DC electromagnetic chuck enables multifunctional operation (crushing plus loading/unloading)
