CASE CX130/CX135/CX160 Series (13-16t) hydraulic pulverizer
Dual-cylinder shearing & pulverizing (360° hydraulic rotation) | Fits 12–18 ton excavators | Shearing force: 1900 kN; Pulverizing force: 1120/720 kN
✔ Reinforced concrete demolition and pulverization
✔ Demolition of chemical plants, steel mills, and steel-structure facilities
✔ Concrete block recycling and reuse
✔ Dual-function integration: shears rebar and pulverizes concrete
| Technical Specifications | |
|---|---|
| Item / Unit | JSDH220 (Dual-Cylinder Pulverizer/Shear) |
| Applicable Tonnage (ton) | 12-18 |
| Weight (kg) | 1300 |
| Jaw Opening A (mm) | 900 |
| Length B (mm) | 1959 |
| Blade (mm) | 180 |
| Shearing Force (kN) | 1900 |
| Crushing Force (kN) | 1120/720 |
| Operating Pressure (bar) | 300 |
| Flow Rate (lpm) | 250 |
| Rotation Diameter (mm) | 593 |
Note: "-" in the table indicates that the data is not provided or is not applicable in the original figure.
Below are compatible excavator carrier models for our hydraulic pulverizer. Depending on model and application, this attachment may also be referred to as rotating hydraulic pulverizer, hydraulic pulverizers or rotational hydraulic pulverizer.
CASE CX130/CX135/CX160 Series (13-16t) hydraulic pulverizer
CATERPILLAR 311-315, 215, E120B/E180, M313D Series (12-18t) rotating hydraulic pulverizer
DAEWOO S130-S180 Series (13-18t) hydraulic pulverizers
DOOSAN DX140/DX180 Series (14-18t) rotational hydraulic pulverizer
HELLA 130W (13t) hydraulic pulverizer
HITACHI EX/ZX120-160 & UH Series (12-16t) rotating hydraulic pulverizer
Engineered for performance, built for durability, designed for efficiency
Made of Swedish Hardox® steel: lightweight and wear-resistant
Pins made of 42CrMo alloy steel

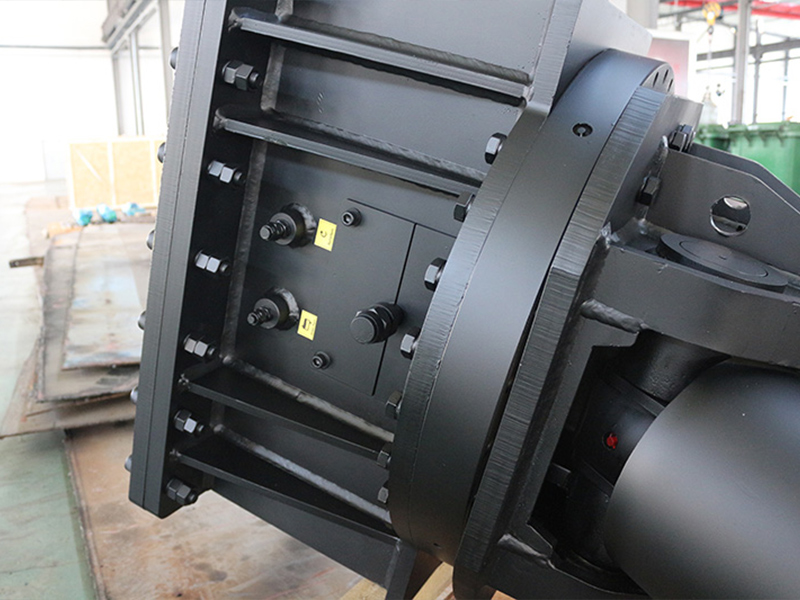

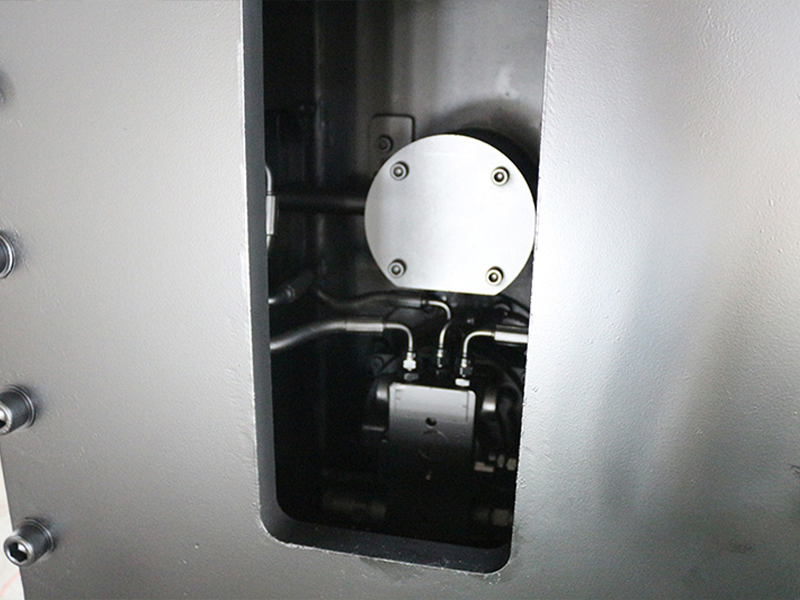

Rotating mechanism features an imported motor for greater operational flexibility

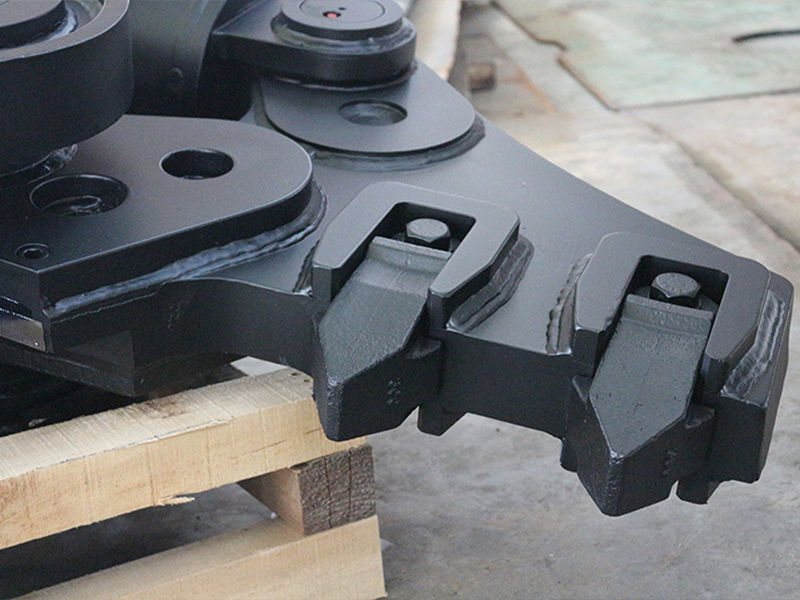

Upper and lower wear-resistant jaw plates are fully replaceable
Optional differential acceleration valve increases no-load stroke speed by nearly 50%
Optional DC electromagnetic chuck enables multifunctional operation (crushing plus loading/unloading)
