AIRMAN / CASE
AIRMAN AX90 (9t) / CASE CX75-CX460 & 9050B Series (7.5-46t) excavator shear
Top-spec flagship exceeding 100 tons—an engineering-grade behemoth.
✔ Dismantling of scrap steel structures; shearing of H-beams, I-beams, and large-scale steel sections.
✔ Heavy-duty shears for scrap yards and ship-breaking yards
✔ Designed for 90-115+ ton excavators—a powerhouse for heavy-duty steel shearing.
| Technical Specifications | |
|---|---|
| Item / Unit | JSDF600 Twin-cylinder heavy-duty shear |
| Applicable Tonnage (ton) | 90-115+ |
| Weight (kg) | 12000 |
| Working Pressure (bar) | 320 |
| Flow Rate (lpm) | 450-540 |
| Shearing Force (kN) | 2200 |
| Maximum Opening (mm) | 550 |
| Type | Dual-cylinder hydraulic rotating type |
| Material | Swedish Hardox® steel blades |
Note: "-" in the table indicates that the data is not provided or is not applicable in the original figure.
Below are compatible excavator carrier models for our twin-cylinder heavy-duty shear. Depending on model and application, this attachment may also be referred to as scrap shear, hydraulic shear for excavator or demolition shear.
AIRMAN AX90 (9t) / CASE CX75-CX460 & 9050B Series (7.5-46t) excavator shear
CATERPILLAR 215-350, 307-308 & E/EL/M Series (7-50t) scrap shear
DAEWOO S75-S470 Series (7-47t) hydraulic shear for excavator
DOOSAN DX55-DX520 Series (6-52t) demolition shear
HELLA 130-280 (13-28t) / HITACHI EX/ZX60-850 & UH/WH Series (6-80t) excavator shear
HYUNDAI R55-R800 Series (6-80t) scrap shear
Engineered for performance, built for durability, designed for efficiency

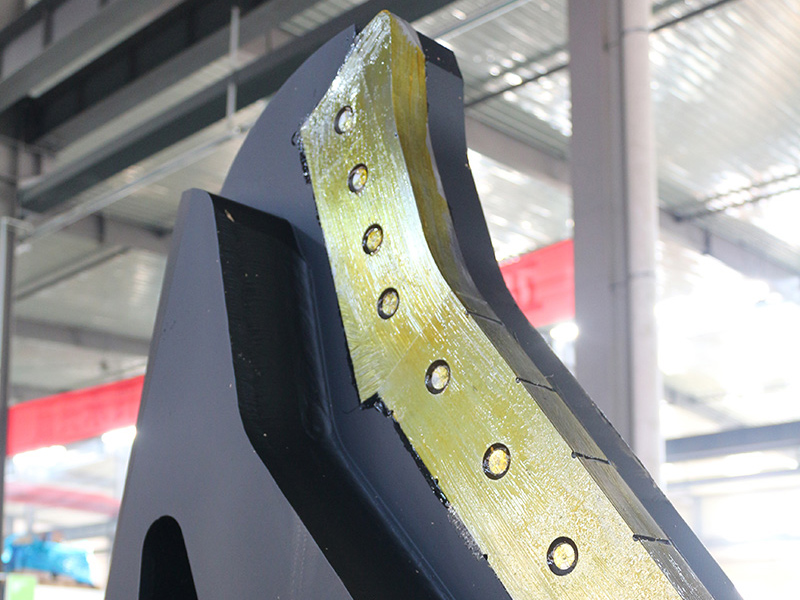

Features Swedish Hardox® steel, offering high blade strength and excellent toughness
Pins made of 42CrMo alloy steel for superior strength and toughness
Dual-cylinder shearing system with synchronized operation of upper and lower cutting edges
Equipped with a differential speed valve, increasing no-load stroke speed by nearly 50%

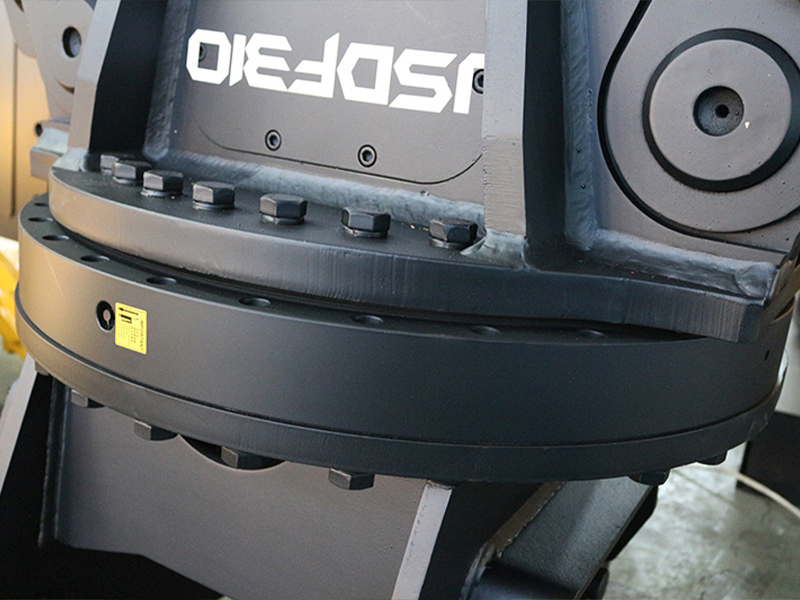

Optional 360° rotation motor available for omnidirectional positioning
High-strength honed cylinder barrel combined with imported seals ensures a long service life

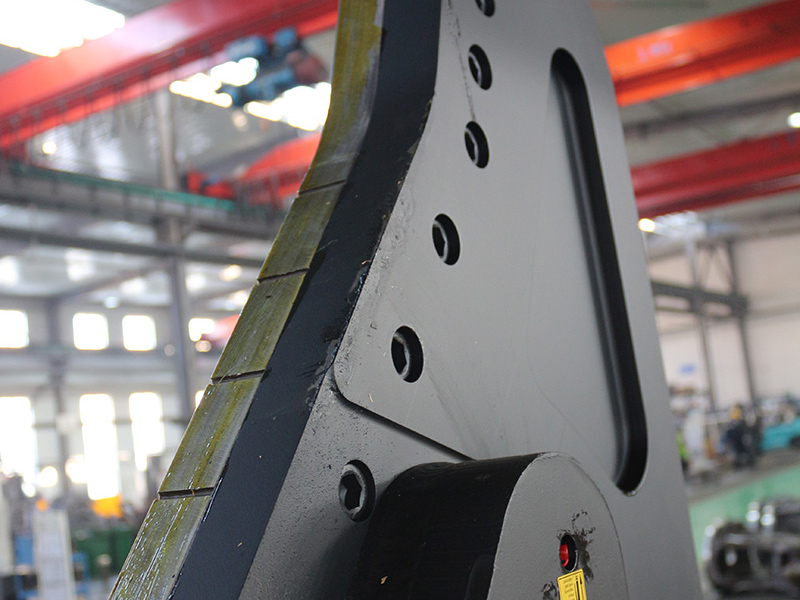

Replaceable upper and lower wear-resistant tooth plates reduce maintenance costs
