01
AIRMAN
AIRMAN AX40(4t)
| Technical Specifications | |
|---|---|

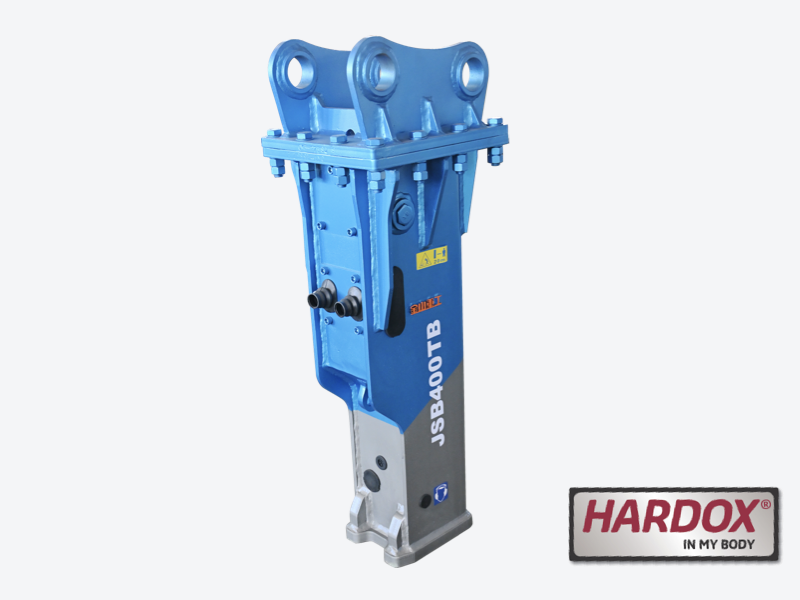

| Item / Unit | JSB400 Hydraulic Breaker |
| Applicable Tonnage (ton) | 4-7 |
| Silent Type (kg) | 361 |
| Right Angle Type (kg) | 331 |
| Triangle Type (kg) | 263 |
| Banana Type (kg) | 313 |
| Silent/Right Angle Length A (mm) | 1637 |
| Triangle/Banana Length A (mm) | 1351/1689 |
| Pressure (bar) | 110-140 |
| Flow Rate (lpm) | 40-70 |
| Frequency (bmp) | 500-900 |
| Hose (inch) | 1/2 |
| Chisel Diameter (mm) | 68/70 |
Note: "-" in the table indicates that the data is not provided or is not applicable in the original figure.
Below are compatible excavator carrier models for our twin-cylinder heavy-duty shear. Depending on model and application, this attachment may also be referred to as scrap shear, hydraulic shear for excavator or demolition shear.
AIRMAN AX40(4t)
BOBCAT 435(5t)
CASE CX50B(5t)
CATERPILLAR 303.5D CR(4t)
DAEWOO S50(5t)
DOOSAN DX55/60R(6t)
